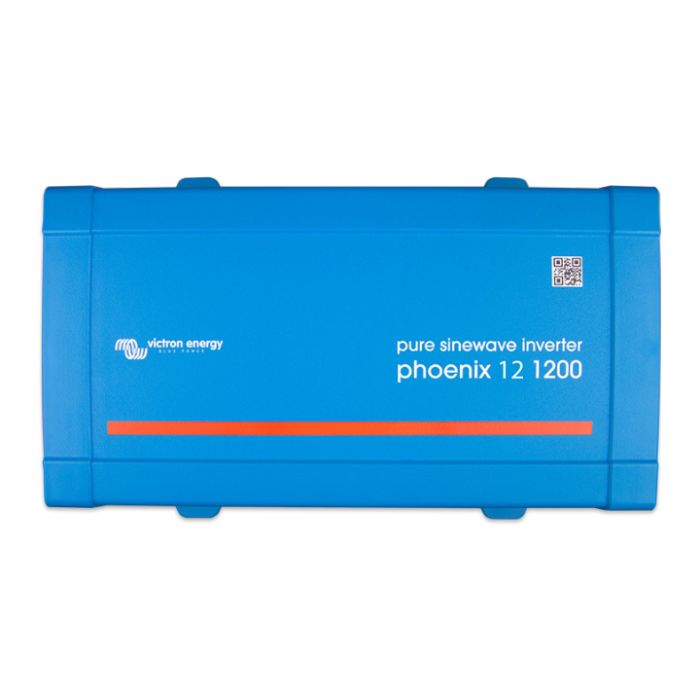

Victron Phoenix Inverter 12V/230V (1200VA)

With Phoenix Inverter, you can use leisure or car batteries to connect devices that require 230VAC.

This Phoenix inverter 12V (DC) is perfect for mounting in vehicles etc when 220V (AC) is not available. This allows you to connect your devices to it for power supply.

Victron Phoenix inverter with Hybrid-HF technology is intended for professional use. Phoenix has a modified sine wave with high efficiency and delivers the desired effect without any worries. The high connection power is used for connecting loads such as voltage conversion.

Meets the standard according to EN/IEC 60335-1, EN/IEC 62109-1, EN55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-3, 2004/104/EC, EN 50498

Victron Phoenix manual (PDF)

VictronConnect app

Phoenix is ​​equipped with a communication port for quick and easy access to status information, alarms and automatic, configurable low voltage switches. You can access the user settings from your computer or mobile device via VictronConnect, which is a free app.

With the app, your inverter pairs with your mobile phone. You then get a quick overview of: AC output, status, and battery voltage.

You also get a complete overview of:
• "Low battery" alarm level
• Shutdown and restart due to "low battery"
• Dynamic shutdown depending on load
• Voltage 210 ... 245VAC
• Output frequency 50 or 60 Hz
• ECO mode on / off and ECO mode setting

In addition to the above, you can monitor:
• Input and output voltage
• % load
• Alarm

Short-circuit safe

The inverter is short-circuit proof and protected against overheating, regardless of whether it is due to a large load or a high ambient temperature. It has a high starting power, which is required to start, for example, halogen lamps, power tools and LED lamps. If the load drops below a preset value (at least 15W), the inverter at ECO Mode will automatically enter its "sleep mode". The inverter flashes for a short period of time in "sleep mode" (adjustable, default is every 2.5 seconds). If it is connected to a larger load than the preset value, the inverter will light with a fixed light.

With a 2-pin connector or "battery plus", you can connect a switch for remote start and remote stop, the connector is connected to the left pin of the 2-pin connector.

Specifications:

• Temperature range: -40 to +60 ° C
• Max. efficiency: 90%
• Enclosure class: IP21
• Steel and plastic chassis
• Cable area: max. 10 mm² / AWG8
• Cooling: Fan
• Input voltage: 9,2 to 17V
• Output: protective contact, cable, open ends
• Output type: Pure sine wave
• Inverter type: Phoenix 12/1200
• Output voltage: 230 V / AC
• Output frequency: 50 Hz
• Max. power: 1200 W
• Standby consumption: 1 W

Dimensions & weight:

• Depth: 362 mm
• Height: 117 mm
• Width: 232 mm
• Weight: 7,4 kg
