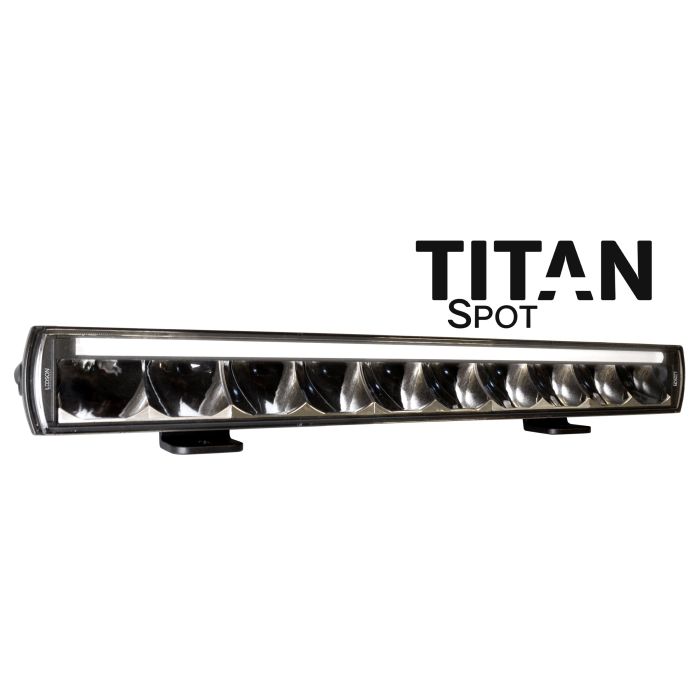

LEDSON Titan Spot LED Ramp 20.5 "100W (Spot Beam, Position Light) - DEMOEX

Demo product with discounted price (regular price SEK 1695).  Has served as a display sample. All accessories and packaging included. The product has only been tested at the store and not been exposed to regular use.

Titan Spot is for you who want a solid and stylish LED ramp that provides as much light as possible far ahead on the road with its Spot beam light image. If you drive a lot on country roads / motorways, this is the ramp you should have. As a big plus in the edge, it is equipped with a position light that emits a soft but distinct light.

In short, it makes you look good during the day and look (far) good in the evening!

NOTE: Also available as a package with LED ramp + holder + DT relay: Komplett Titan Spot LED-rampspaket artnr 1360051

See our blog post where we compare light images between different LED-bars and auxiliary

Spot-light image

A spot light image provides a focused light beam straight ahead to illuminate the road in front of the car in the maximum possible way. This is ideal if you drive a lot of country road or motorway with a very visible carriageway far ahead. Also called high beam.

Titan comes with 1, 2 ... 3 different mounting options! Place smoothly above or below the number plate:

• (Side-mounted legs that can be rotated around their own axis to angle the ramp)
• Standing sliding, rear-mounted brackets that can be adjusted along the entire ramp for a very flexible mounting
• (Hanging sliding, rear-mounted brackets that can be adjusted along the entire ramp for a very flexible mounting)

What else is necessary?

• Dt-relay: We strongly recommend that you use our DT relay with original connection to connect the LED ramp to the vehicle. You then have the opportunity to choose between controlling the ramp with a button or connecting it to the high beam (the ramp is then switched on and off automatically together with when the high beam is switched on and off, which most people prefer). There is then also a fuse between extra light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay (available for download here).
• DT-adapter 2 pol till 3 pol: Needed in cases where a DT relay kit is used
• Mounting on vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and nicer with the help of a number plate holder or pipe bracket. We recommend article number 3346053 for flexible and smooth mounting. NOTE: specially adapted holder is intended for this bar: Holder for LED-bar LEDSON Titan Drive/Spot 20,5"

Characteristics:

• EMC-fused ECE R10 (does not interfere with the radio)
• "Spot beam" light image (light far ahead on the road)
• 9500 lumens (theoretical), 8075 lumens (actual)
• Color temperature about 6000K (cold white)
• Range 1154 m (0.25 lux), 577 m (1 lux)
• 3 x brackets: standing sliding, hanging sliding, side-mounted legs

Technical data:

• 100 W (10 x 10 W Cree LED)
• IP68 (water / dust tight)
• Aluminum housing and polycarbonate lens
• Side-reflecting optics
• Electronic heat management
• 6.5 A at 12 V and 3.25 A at 24 V
• Pressure equalization diaphragm

Included:

• Titan Spot LED ramp
• Side-mounted legs
• Sliding brackets (standing / hanging)
• Bolts and screws to secure the ramp to a suitable surface
• DT connector (3-pin) NOTE: Complete with DT relay kit and DT adapter 2 to 3 poles for best control (read more above under "what more is needed?"
• Installation instructions

Measurements & weight:

• Width: 516 mm
• Height: 58 mm
• Depth: 81 mm
• Weight: 1,63 kg
