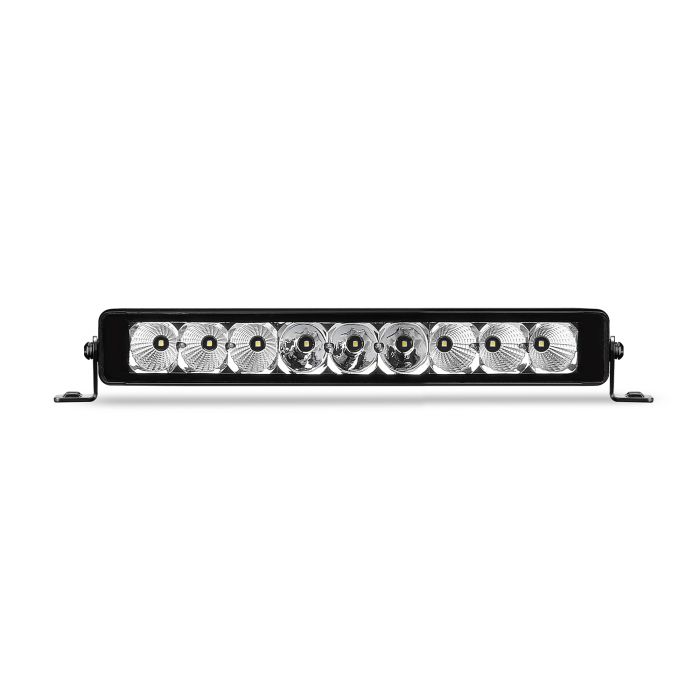

SLIM 12" Gen2 LED bar 45W

Ledson SLIM 12" Gen2

This LED bar is suitable for you who want to mount an auxiliary light on your ATV, snowmobile or car (if you want a very discreet bar on the car). You get "a lot of light per cm" if you look at the LED bars space-saving properties: it is only 33 cm wide and 5 cm high! 2nd generation is upgraded with a modernized design.

From the technical aspect, you get 9 OSRAM diodes that together deliver 4100 actual lumens and shoot 1 lux 227m.

Combined beam pattern

The bar has a combined light pattern, meaning that it both scatters light in a wide area close to the vehicle, but also focuses light far away. The bar also comes with two mounting options; side mounts or back-mounts, so that you can fit the bar just right for your vehicle.

What more is needed?

• Ledson Connect: We strongly recommend using our Ledson Connect with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button (optional, see 7801009) or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between the bar and battery to prevent possible damage to battery and other equipment and when using XBB, it can be plugged directly into the Connect.
  Detailed installation instructions are included with the DT relay.
• Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and more stylish using a number plate holder.

Features:

• Combined beam pattern (Wide and elongated)
• 5400 lumen (theoretical), 4100 lumen (actual)
• Color temperature 5700K (neutral white)
• Range 454 m (0,25 lux), 227 m (1 lux)
• 2 x mounting options

Technical data:

• 45 W (OSRAM 5W x 9)
• IP67 (water tight)
• Aluminum Casing and Polycarbonate lens
• 3,74 A at 12 V and 1,9 A at 24 V
• Pressure relief membrane
• DT connector 2 pin (supplied)

Measurement & weight:

• Width: 333 mm
• Height: 47mm
• Depth: 44 mm (exkl bracket)
• Weight: 936 g

NOTE: The DT connector must not be cut because it increases the risk of moisture damage and the warranty will cease to apply. DT connector (male) is included with the product.
