Position lights for Scania fog lights 2023+

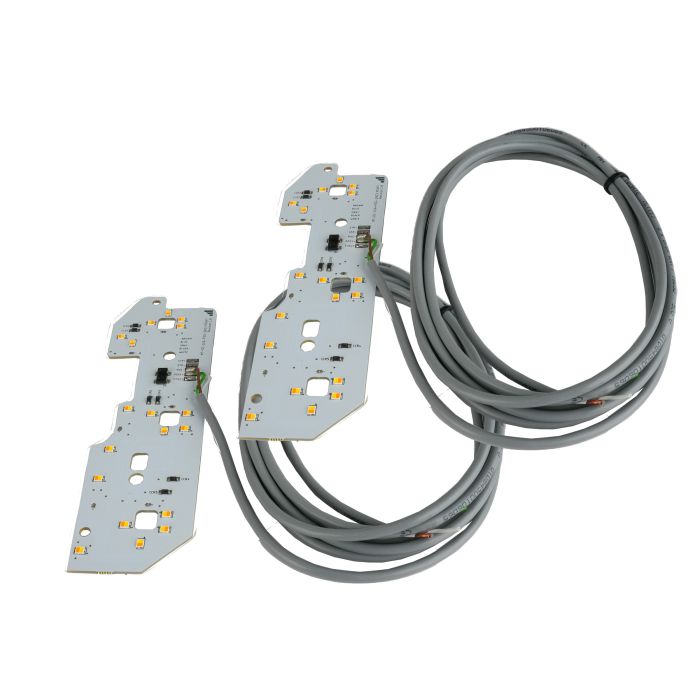

Light sources with a total of 36 powerful LEDs. Designed as supplementary position lights in Scania +2023 fog lights. The light source is available in two versions: dual color and with a strobe function. The entire reflector lights up, providing a beautiful non-glare light. The smart design ensures that the fog light's function remains unchanged.

Dual color

The light source can emit two different light colors, controlled by which wire is connected to the plus pole. There is a 3-meter cable included with the light source.

Installation

The lamps need to be opened for installation. One of the positive changes in the 2023 model of the fog lamp is that it is now quite easy to disassemble, no more hassle with glue!

Remove all screws from the cooling plate on top of the lamp. Remove the cooling plate. Remove the screws from the original light source. Mount our light source on top of the original one using the included spacers and 14mm screws.

The cable from the light source must be routed out of the lamp. We prefer to use one of the blue valves on the back; they can simply be pulled off. You will need to use a pull string from the outside through the valve. Note that it may be necessary to enlarge the valve hole. If the cable has a connector, it must be cut and then reconnected afterward.

Once the cable has been routed through, we recommend that it is well sealed around the cable and valve hole, followed by using heat shrink tubing over the entire area.
