Connect Pro relay kit (Replaced with 7801010)

€58.19 €46.55
€58.19 €46.55
Retailer price €58.19 Retailer price €46.55
Product no longer in stock
SKU
7800301

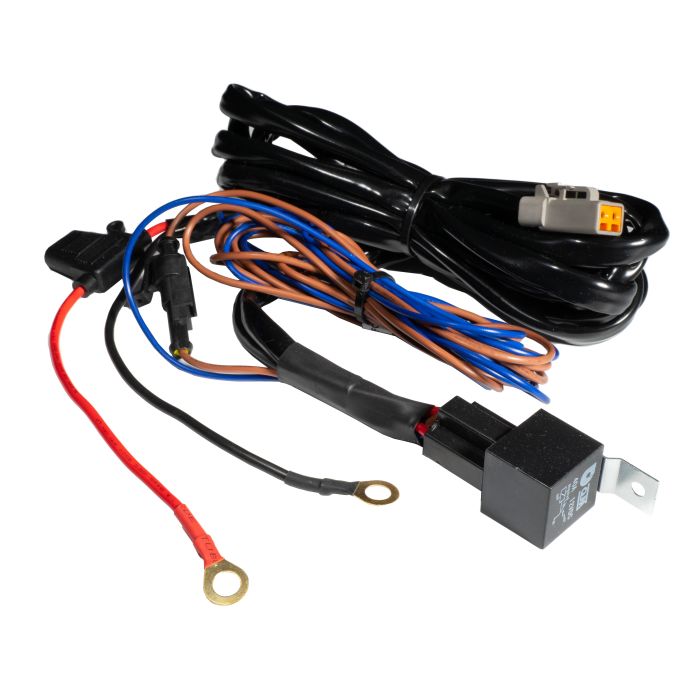

 Pro relay harness for LED bar
✓ Ensure full power from your light
 With 1 x ATP / DTP connector

Replaced with item number 7801010 that can be found here

(Replaced with item number 7801010 that can be found here)

Don't let your wiring limit the light of the bar...ensure full power with this professional relay wiring! Pro relay harness with 1 x ATP / DTP connector for 12V. Developed to be used for the more powerful LED bars. Prevents voltage drops.

Max 25A/300W. Also works with XBB Dongle and is possible to connect with power switch.

See instructions here.



Installation if you have halogen on your high beam:

  • Connect the plus and minus cables directly to the battery
  • Pull the cable with the ATP connector to your lighting in the front and connect this to the bar
  • Connect the brown cable to the vehicle high beam signal



Installation with XBB Dongle, if you have original LED or xenon on your high beam:

  • Connect the plus and minus cables directly to the battery
  • Pull the cable with the ATP connector to your lighting in the front and connect this to the bar
  • Do you want to control e.g. the bar's position light, then you connect the blue cable (optional)
  • Mount the XBB Dongle into the vehicle OBD socket and replace the existing relay with the XBB Power Unit
  • Download the XBB app to your mobile phone and complete the settings
Technical information
Number of contacts 1 x ATP-connector with 2-pole
Manufacturer Ledson
Warranty 24 Months
Voltage 12 V
Manufacturer Ledson
Unit st
