OptoLine D position light fiber optic with reflex

From €15.39 €12.31
From €15.39 From €12.31
Retailer price From €15.39 Retailer price From €12.31
SKU
360520

✓ Side marker / position light with fiber optic LED
✓ Replaces Talmu and Hella
✓ E marked with approved reflex

If you like to be seen, Ledson OptoLine D position light / side marker is just right for you! Equipped with a reflex and fiber optic LED with two nicely solid lines gives a delicious, modern impression. E-marked side marker or position light with approved reflex, waterproof and works for both 12 and 24V. Has the same CC dimensions of 90mm as Talmu and Hella.

3 meter cable, screws for mounting included. See rubber gasket with a perfect fit here.



Characteristics:

  • Orange E-marked: ECE R3, R91 - Read more about UNECE regulations here
  • White and red E-marked: ECE R3, R148 - Read more about UNECE regulations here
  • Godkända som positionsljus eller sidomarkering med godkänd reflex
  • EMC secured: ECE R10

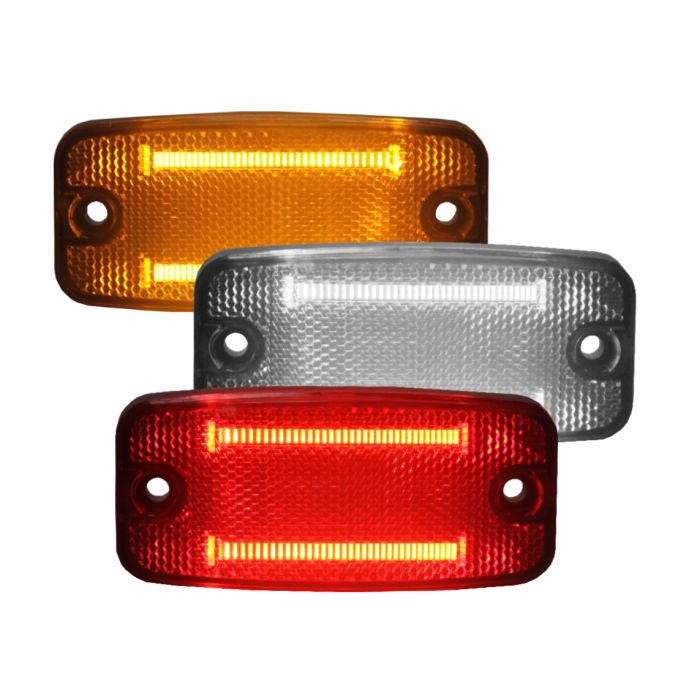

  • Fiber optics with orange, white or red light (select your color)
  • 2 x LED
  • IP67 rated (water / dust tight)
  • Voltage: 12-24V
  • Power consumption: 0,6W (12V), 1,4W (24V)
  • Operating temperature: -40°C till 65°C



Dimensions & weight:

  • Length: 111 mm
  • Height: 51 mm
  • Depth: 18 mm
  • Cable length: 3 meter
  • Weight: 48 gram
  • Hole distance: 90 mm (cc)



Side marker cable colors:

  • Black: power (+)
  • White: ground (-)



Available as:

  • White (part number 360521)
  • Red (part number 360522)
  • Orange (part number 360523)
Technical information
Warranty 36 MÃ¥nader
Manufacturer Ledson
Height 55 mm
Length (mm) 115 mm
Depth 23 mm
Cable length 3 meter
