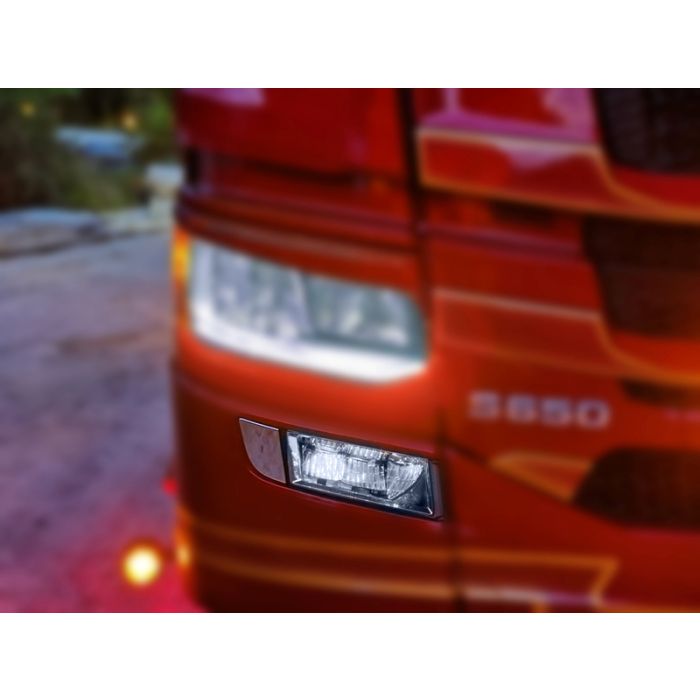

Position light in fog light Scania 2016-2022 (Cool white and yellow)

LED light sources with 18 powerful LEDs specially developed to fit into original Scania LED fog lights. The light is not dazzling, can act as a position light and are available in cool white and yellow. The original fog light is fully preserved do to the smart design. Do to the additional light source there is always light in the entire reflector of the fog lamp.

The light source is attached on top of the existing light source to the fog light. Screws and spacers are included and must be used during assembly. A 3 meter cable is included.

Mounting

Remove all five screws on top of the lamp.

The heat sink is glued to the lamp and must carefully be cut along the outer edge with a hobby knife. Look at the picture on the top of the heat sink, it is marked with a red dotted line where you are going to cut. Break the lamp apart, use e.g. one or two flat head screwdrivers to disassemble the adhesive.

Remove as much of the original glue as possible.

Drill a hole in the lamp where it is marked in the picture. If possible frame the lamp between two heat sinks, as the gluing becomes considerably easier. Route the cable from the light source through the hole. Be careful not to damage the jacket. It can be an advantage to lower the hole. It is then important that you seal the hole again.

Remove the two outer screws from the original light source and place two spacers on the screw holes. The light source is placed on top of the existing one, with the LEDs turned off. The light source is screwed on with the two supplied M4x8mm screws. The lamp is glued again and screwed together.

Connect the lamp, e.g. to the existing position light.
