Oblique warning light, 4 LEDs, 12-24V - Red

€48.09 €38.47
€48.09 €38.47
Retailer price €48.09 Retailer price €38.47
In stock
SKU
500420

✓ SAE Class 1 approved
✓ R65 and R10 approved
✓ Extra good spread sideways

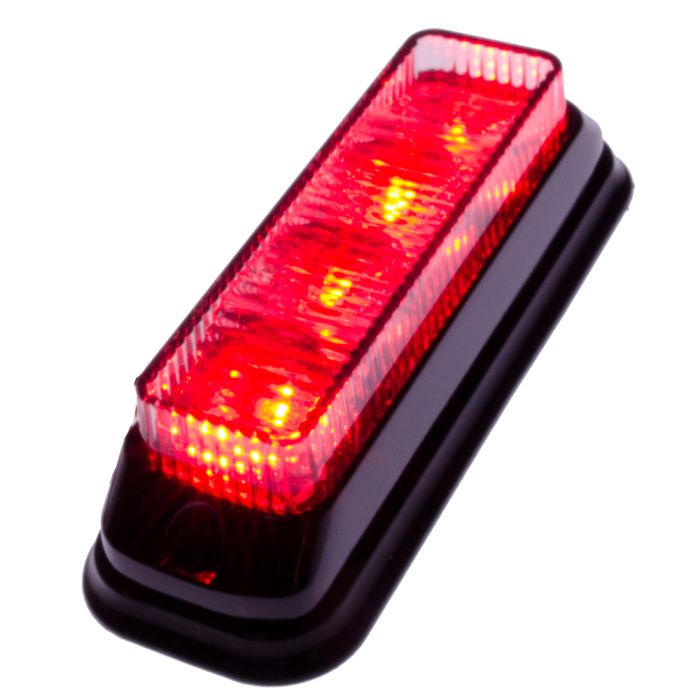

Rectangle warning light with 4 powerful diodes. The lamp has very good visibility sideways thanks to it's oblique diodes on the sides. The lamp can only be surface mounted. A rubber seal is included for extra waterproofing. The lamp is made out of metal and has a plastic lens in hard polycarbonate. It's ECE-approved and meets SAE Class1 requirements.

Available in Orange, Red and Blue colour.

The lamp runs on 12-24V and has 170mm long cables.

Specifications

Light

  • LED: 4 x High power
  • Flash patterns: 19
  • Colour: Orange, red or blue
  • Approvals:
    • E6-10R-030265
    • E6-65R-000049
    • SAE J595 Class 1

Housing

  • Weatherproofing: IP68
  • Housing:  PC lens
  • EMC-proof: Yes
  • Adjustable mount: No
  • Weight: ~0,13 kg
  • Size with flange: 118x41x29 mm (WxDxH)

Electric

  • Voltage: 12-24V/DC
More Information
Color Red
Manufacturer Ledson
Width 41 mm
Height 29 mm
Height 29 mm
Length (mm) 118 mm
Polarity dependent No
Length (mm) 118 mm
Cable length 190 mm
Power usage 12V/24V 0,7A / 0,4A
Unit st
