Oblique warning light, 4 LEDs, 12-24V
From
€0.00
From
€0.00
Retailer price
From
€0.00
Retailer price
From
€0.00
SKU
500400
✓ SAE Class 1 approved
✓ R65 and R10 approved
✓ Extra good spread sideways

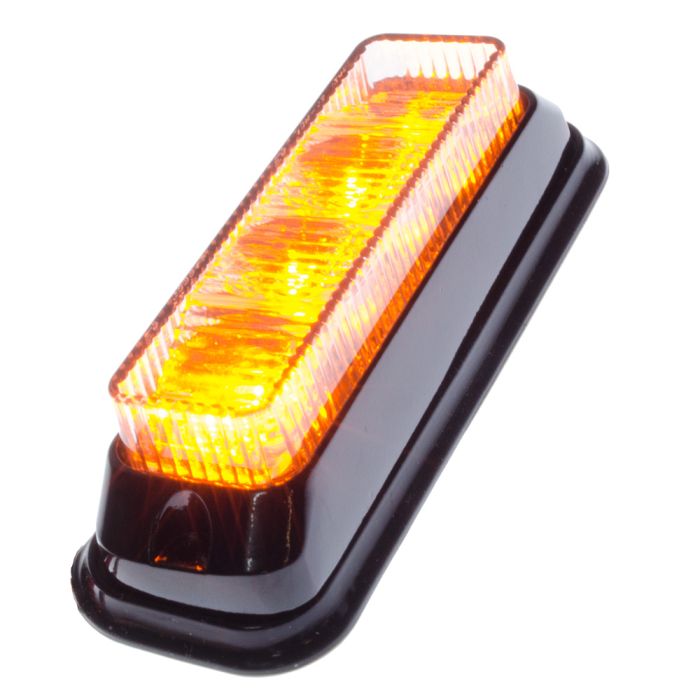

Rectangle warning light with 4 powerful diodes. The lamp has very good visibility sideways thanks to it's oblique diodes on the sides. The lamp can only be surface mounted. A rubber seal is included for extra waterproofing. The lamp is made out of metal and has a plastic lens in hard polycarbonate. It's ECE-approved and meets SAE Class1 requirements.Â
Available in Orange, Red and Blue colour.
The lamp runs on 12-24V and has 170mm long cables.
Specifications
Light
- LED: 4 x High power
- Flash patterns: 19
- Colour: Orange, red or blue
- Approvals:
- E6-10R-030265
- E6-65R-000049
- SAE J595 Class 1
Read more about UNECE regulations here
Housing
- Weatherproofing: IP68
- Housing: Â PC lens
- EMC-proof: YesÂ
- Adjustable mount: No
- Weight: ~0,13 kg
- Size with flange: 118x41x29 mm (WxDxH)
Electric
- Voltage: 12-24V/DC
| Tillverkare | Ledson |
|---|---|
| Power usage 12V/24V | 1A / 0,5A |
| Height | 41 mm |
| Length (mm) | 118 mm (hålavstånd 103 mm) |
| Cable length | 18cm |
| Width | 29 mm |
| Warranty | 12 Months |
