Reverse light package with Nano x 2

This package contains two Nano reverse lights and a reverse light harness! Nano reverse light from Ledson – the ultimate solution for powerful lighting in an ultra-compact package. At only 17 mm in height, Nano is remarkably discreet when mounted on your vehicle, yet it delivers exceptional strength in its 140° wide beam pattern light output. Designed to provide superior visibility behind the vehicle, Ledson Nano ensures a clear and bright view while reversing.

E-marked and approved as a reverse light (ECE R23), this super compact light combines modern aesthetics with outstanding performance. Its sleek and contemporary design seamlessly integrates with your vehicle, making it both functional and stylish.

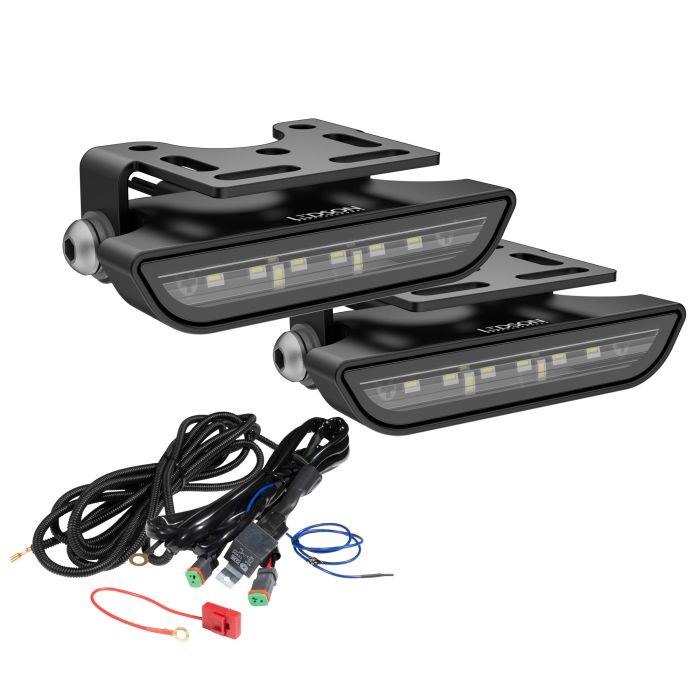

Included in the package:

• Nano reverse light x 2
• Reverse light wiring with 2x DT

Specifications (per Nano light):

• E-marked: ECE R23 (approved as reverse light)
• Range: 31m (1 lux)
• Lumen: 2800 lumens (actual 1750)
• Light distribution: 140° wide beam pattern
• Color temperature: 5000K
• Power: 30W (6 x 5W LED)
• IP rating: IP68 (water and dust proof)
• Electronic thermal management
• Voltage: Only for 12V
• 2A at 12V
• EMC certified: ECE R10

Dimensions (per Nano light):

• Width: 86 mm
• Height: 17 mm (26 mm with bracket)
• Depth: 44 mm
• Nano has 30 cm cable with 2 pole DT connector

See instructions for mounting here (PDF)

Note: The DT connector should not be cut, as this increases the risk of moisture damage and voids the warranty. A DT connector (male) with a splice is included with the product.
