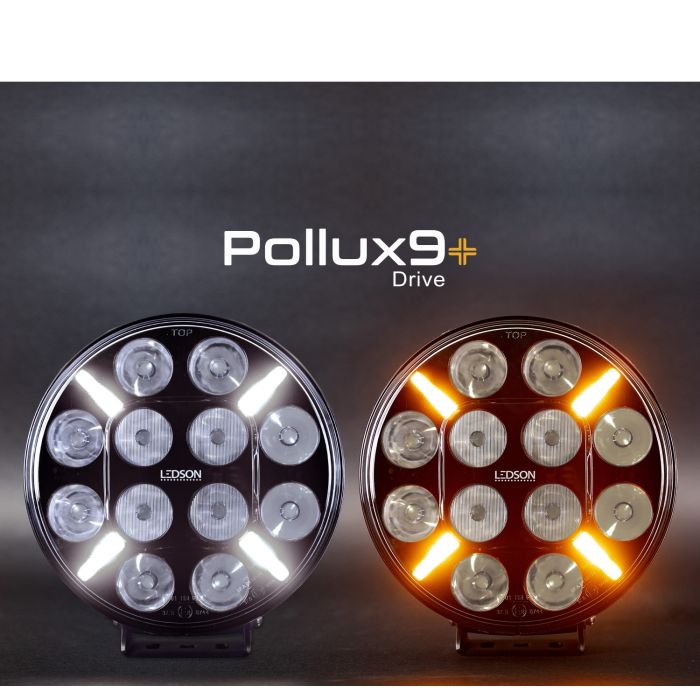

LEDSON Pollux9+ Drive LED auxiliary light 120W with Yellow / White Position Light (E marked, Driving Beam)

Promoted with yellow-orange position light

We have listened to you and developed an exclusive product that has not been on the market before!

LEDSON Pollux9 + is equipped with optional yellow-orange or xenon-white position light. In addition, Pollux9 + is available in two different versions; with Driving Beam and Spot Beam light pattern. Spot Beam has up to 120 meters longer light distance compared to Driving Beam, while Driving Beam gives has greater light width. Both versions of the Pollux9 + are E-marked and equipped with TIR reflectors for a minimal waste of light.

TIR reflectors

TIR stands for Total Inner Reflection and means that all light is effectively reflected and directed before it is sent out from the reflector. The spill light (the light that is not directed but which disappears "unfocused" from the light without making any real use) is minimized. A traditional reflector directs and focuses most of the light but far from everything.

In summary, you get more efficient light on the road and take full advantage of every LED on the auxiliary light with the TIR reflectors!

Driving Beam light image

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Spot light image

A spot beam has a focused beam of light straight ahead to bring light further down the road in the maximum possible way. This is ideal if you drive a lot of highway or on major roads. Also known as auxiliary beam image.

Specifications:

• E marked (E8, ref. 37,5 for Driving Beam, ref. 50 for Spot Beam), ECE R112 / R10 / R7 (white position light)
• EMC secured (does not disturb the radio)
• With position light (4 LEDs) yellow-orange or xenon white (connect the color you want)
• "Driving beam" light image or "Spot Beam" light image (select design)

• Range Driving Beam: 850 m (0.25 lux), 425 m (1 lux)

•

  Range Spot Beam: 1090 m (0.25 lux), 545 m (1 lux)

• 12000 lumens (theoretical), 9600 lumens (actual)

•

  Cold White Light (6500 K)

• TIR optical system (Total Inner Reflection)

•

  Pressure equalization membrane

• 24 month warranty

Technical data:

• 120 W (12 x 10 W Cree XM-L2 LED)
• Rated power 92,4 W
• IP68 (water / dust tight)
• DT connector (4-pin) included
• Electronic heat management
• Voltage 9-36 V
• Load 7,7 A @ 12 V and 3,6 A @ 24 V

Measurement & weight:

• Width: 218 mm
• Height: 234,5 mm (inkl fäste)
• Depth: 68,5 mm
• Weight: 1,9 kg

Supplied:

• Pollux9+ LEDSON LED auxiliary light
• Bolts and screws for attaching the auxiliary light with either one or two attachment points
• DT connector (4 pin)
• Installation instructions

Installation instructions for cables (detailed instructions included with the product):

• Red: Auxiliary light (+)

• Black: Auxiliary light / Position light (- ground)

• White: Position light (+) white light

• Yellow: Position light (+) yellow-orange light

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.
