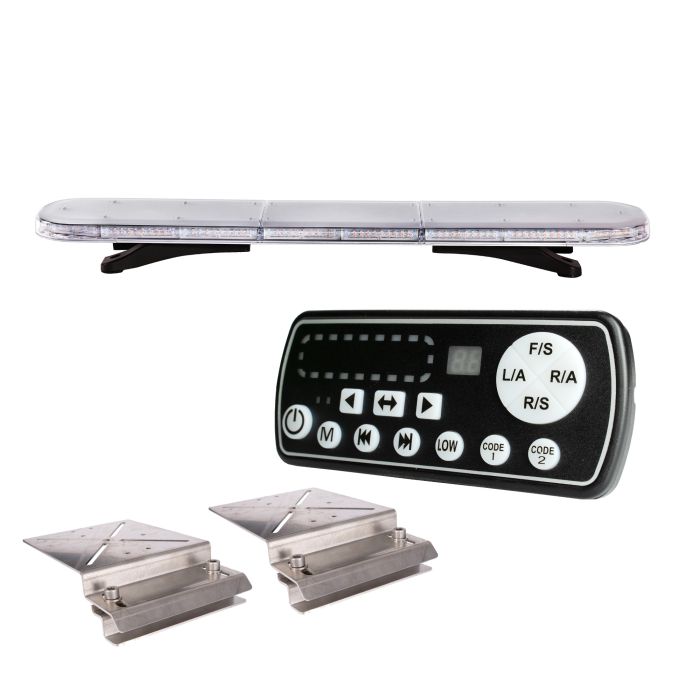

LEDSON OptoGuard Warning Light LED Bar 1132 mm (With Control Box & universal roof brackets for rails)

Ledson OptoGard Strobe Bar - Modern, low-profile, slim (only 40 mm high + 210 mm wide), with strong 3W LEDs which makes your warning light bar visible even during the bright day! Approved according to ECE R65 and EMC-secured ECE R10

This warning flash LED light bar is approved according to ECE R65 and EMC-secured ECE R10 and comes with a full 36 month warranty.

 Installation instructions (PDF)

For length 250 mm and 365 mm:

• Connection: With cig plug (control the strobe patterns with a button)
• Mounting: Magnetic bracket (250 mm has two magnetic feet, 365 mm has four magnetic feet)

For length 834 mm or longer:

• Connection: Directly via the supplied 3 meter cable with the associated connection box to separate switches (optional accessory) to control individual functions. As an accessory, we can also offer a separate control box that can easily utilize all 29 strobe bar flash patterns: Control box (part 5130001)
• Mounting: Supplied stainless universal brackets or via our model-fitted brackets for some of the common car models (below)

Model-adapted roof brackets are available for your warning light LED bar, custom-made with exact dimensions for the below car models:

• VW Amarok from 2011 and newer
• VW Caddy from 2004 and newer
• VW Transporter T5 / T6 from 2003 and newer
• Ford Ranger from 2011 and newer
• Ford Transit from 2014 and newer
• Ford Transit Connect from 2014 and newer
• Ford Transit Custom from 2013 and newer
• MB Sprinter, Vito, V250
• Universal for rails

Specifications:

• E-marked: ECE R65
• EMC-secured: ECE R10
• Clear polycarbonate lens
• Heavy-duty aluminum frame for good heat dissipation and stability
• Well thought out design
• Service friendly with easily replaceable modules
• Temperature range -30 to +60
• Strobe patterns: 26 or 29 different (depending on length)
• LEDs: 30 to 180 x 3W (depending on length)
• Power: 90W-540W (depending on length)
• Color glass: Clear glass
• Color LED: Orange
• IP-classification IP67
• Voltage: 9-33 V
• 36 month warranty

Measure:

• Length: 250 mm to 2022 mm (choose length in the list)
• Width: 210 mm
• Height: 40 mm
• Height (incl. Feet): 90 mm
• Cable length: 3 meters
