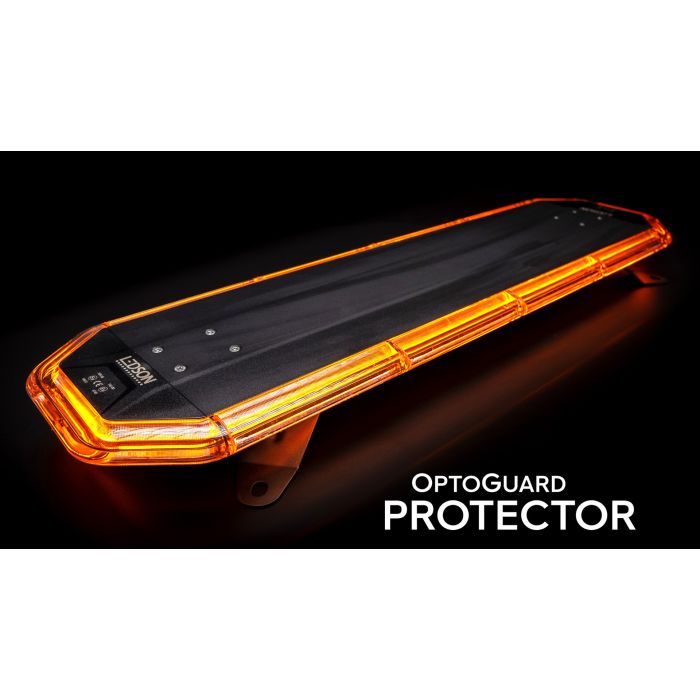

Optoguard Protector Warning light LED bar (ECE R65 class 2)

Ledson OptoGuard Protector is the truly thin warning light bar (only 26mm in height) with an aerodynamic design for minimal air resistance! All lengths have ECE R65-class 2 approved warning light patterns. Class 2 means that they have support for a night mode when the strength of the strobe is dimmed. You have the choice between two stylish options - either the transparent clear lens or the mysterious smoke-tinted version

The Protector series is also uniquely equipped with the popular triple flash pattern (alternating left and right) for both day and night mode.

Assembly and control:

The two lengths of 317 mm are mounted with a center bolt or a magnetic mount and are controlled via cables or a cigarette plug.

The other lengths ranging from 775 mm to 2000 mm are mounted with universal roof brackets for rails or with the included feet. They are controlled via cabling or with a wireless remote control (part no. 5142001, not included)

Model-specific roof brackets:

We have roof brackets specially made for Amarok, Caddy, Crafter, Navara, Ranger, Sprinter, Transit, Transporter, Vito, V250 and universal for rails which you can find here!

Specifications:

• E-marked: ECE R65 klass 2 - Read more about UNECE regulations here
• EMC-secured: ECE R10, CISPR25 klass 3
• Strobe patterns: 13 or 17 different, depending on length
• Effect: 80W-236 W (depending on length)
• Color glass: Clear glass
• Color LED: Orange
• Voltage: 10-30 V
• IP-classification: IP67 (Waterproof)
• 36 months warranty

Measurements:

• Length: 317 mm to 2000 mm
• Width: 220 mm
• Height: 26 mm
• Cable length: 5 m (Magnet bracket 2,4 m and Centered bolt approximately 0,5 m)

Strobe patterns (775 mm and larger):

• Triple flash, alternating left & right - day mode (R65 class 2)
• Triple flash, alternating left & right - night mode (R65 class 1)
• Cruise mode (dimmed down solid light)
• Wandering from the center
• Wandering to the left
• Wandering to the right
• Single flash - day mode (R65 class 2)
• Single flash - night mode (R65 class 1)
• Double flash - day mode (R65 class 2)
• Triple flash, alternating front/back/all
• Triple flash, alternating middle/two ends/all
• Quadruple flash
• Single flash alternating left & right
• Wandering flash alternating in & out
• Wandering flash
• 2 x wandering flash - day mode (R65 class 2)
• 2 x wandering flash - night mode (R65 class 1)

Available as:

Clear Lens

• 317 mm (part no 5142031)
• 317 mm (part no 5142032)
• 775 mm (part no 5142078)
• 928 mm (part no 5142093)
• 1082 mm (part no 5142108)
• 1235 mm (part no 5142124)
• 1388 mm (part no 5142139)
• 1541 mm (part no 5142154)
• 1847 mm (part no 5142185)
• 2000 mm (part no 5142200)

Smoke Lens

• 317 mm (artnr 51423031)
• 317 mm (artnr 51423032)
• 775 mm (artnr 51423078)
• 928 mm (artnr 51423093)
• 1082 mm (artnr 51423108)
• 1235 mm (artnr 51423124)
• 1388 mm (artnr 51423139)
• 1541 mm (artnr 51423154)
• 1847 mm (artnr 51423185)
• 2000 mm (artnr 51423200)
