Raptor 30S LED Auxiliary light Spot

€47.49 €37.99
€47.49 €37.99
Retailer price €47.49 Retailer price €37.99
In stock
100 % of 100

E-marked ECE R112
Spot light image with 1 lux at 275m
5700K color temperature

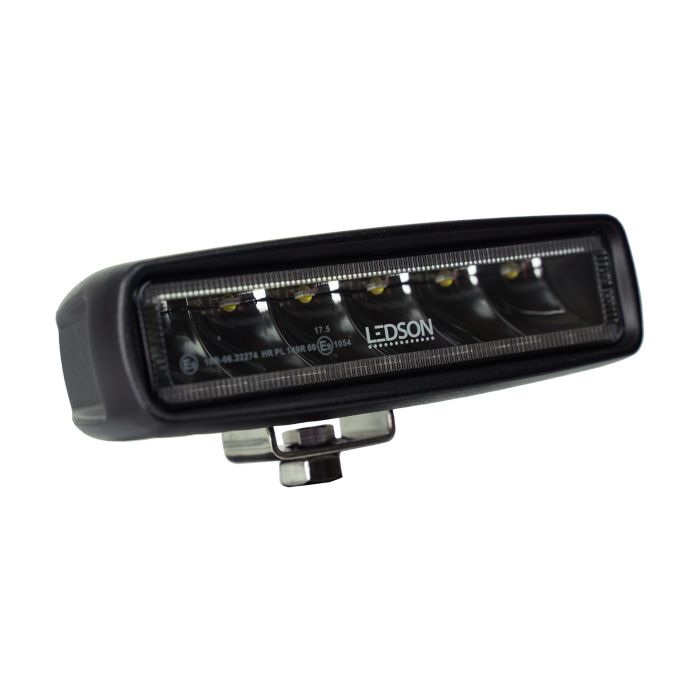

Raptor 30S is an auxiliary light with a narrow and long beam pattern that gives light of 1 lux at 275 meters. It is E-approved R112 to be used as an auxiliary light. Raptor has a slim design as it is only 46 mm high. Suitable as an auxiliary light for smaller vehicles (ATV, UTV, snowmobile, motorcycle).

The product comes with two different brackets, one for standing mounting and one for hanging mounting.


  • Narrow light image (spot)
  • ECE R112 (Approved as auxiliary light) - Read more about UNECE regulations here
  • ECE R10 (EMC-secured)
  • 2520 theoretical lumens, 2259 actual lumens
  • Cold white light (5700K)
  • DT cable included


Technical data:

  • 6 x 5 W LED (total 30W)
  • IP67 (water / dust safe)
  • 10-32 V


Dimensions & weight:

  • Width: 160 mm
  • Height: 46 mm
  • Depth: 64mm (excl. Brackets)
  • Weight: 640 grams


NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.

Technical information
Manufacturer Ledson
Color Xenon white
Warranty 36 Months
Width 90mm
Unit st
Number of contacts 1 x DT-connector
Light flux 2520 lumen (faktiska 2259)
Depth 68mm
Height 46mm
