LED-bar, 9-32V, 48,5", 96x3W Osram (Curved) Hi-Lux

€484.99 €387.99
€484.99 €387.99
Retailer price €484.99 Retailer price €387.99
In stock

 Range: 1020 meters (0,25 lux)
 25920 lumen
 Curved design

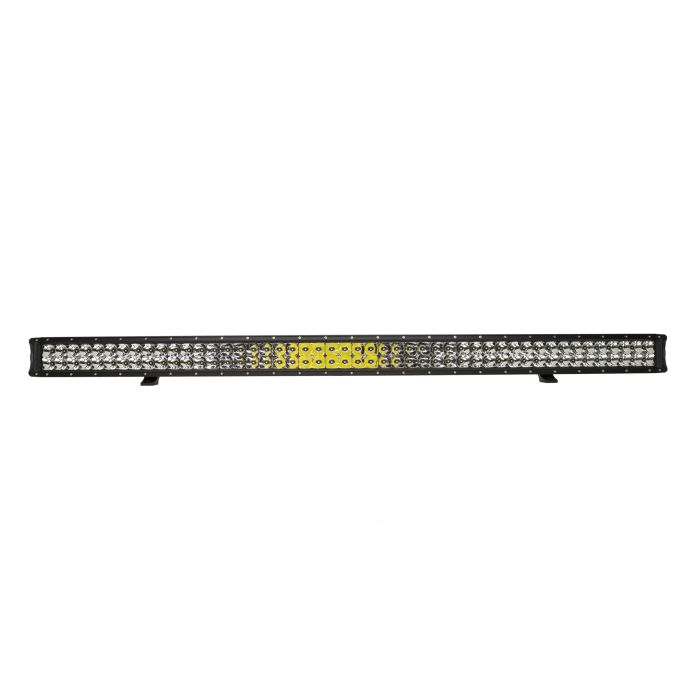

Massive, curved LED-bar with 96 reliable and long-life 3W Osram-diodes. It's IP67-approved, which means it is completely sealed. A huge-sized LED-bar, it's going to give you an incredible amount of light. It gives a cool white light (about 6000K), and 25920 lumen. It's supplied with adjustable mounting details, so that you can decide where you want the most light. "Correctly" mounted, it has a range of 1020 meters (0,25 lux).

This LED-bar has a curved design, meaning that the diodes are not mounted in a straight housing, but rather a housing that is curved. The diodes are mounted on the "outside" of the curve, meaning that they will spread the light across a wider area.

Be careful not to cut the DTP/ATP-cord, since that will void the warranty and increase the risk of water damage.




  • Light flow: 25920 lumen
  • Range (0,25 lux): 1020 m
  • Range (1 lux): 418 m
  • LED: 96 x 3W Osram
  • Light pattern: Spot (8 degrees)
  • Colour: Cool white (about 6000K)
  • E-mark: No
  • Expected life span on diodes: 30 000 hours
  • HiLux-technology: Yes


  • Weatherproofing: IP67
  • Housing: Aluminium housing, PC lens
  • EMC-proof: Yes
  • Pressure-equalizing membrane: Yes
  • Adjustable mount: Yes
  • Measurements: 1255 x 85 x 78 mm (WxHxD)
  • Weight: ~6,2 kg
  • Curved: Yes


  • Voltage: 10-30 V
  • Theoretical output: 288W
  • Actual output: ~206W
Technical information
Power 288W
Manufacturer Ledson
Color 6000K
Warranty 36 Months
Use of power 206,4 W
Unit st
Number of contacts 1 x DT-connector
Light flux 25920 lumen
Cable length 1 m
Depth 65 mm
Power usage 12V/24V 17,2 / 8,2 A
Height 85 mm
Length (mm) 1270 mm
