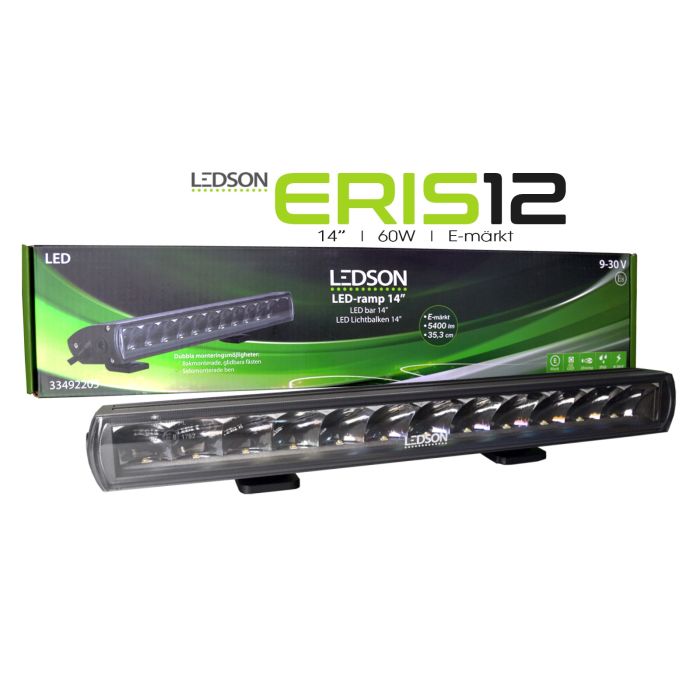

LEDSON Eris12 LED bar 14 "60W (V2.0, E-marked)

LEDSON ERIS12 - NEW January 2018 - Perfect LED bar in every way!

Only 35 cm wide gives a true minimalistic design while this bar is really raw to the look. 0.25 lux brightness is measured 788 m away (1 lux at 394 m) while being E-marked and equipped with dual mounting options, electronic heat management, side reflective optics, and much more!

Can be double-mounted, install two LED bars together! Use the Mounting Kit for dual mounting of ERIS12 LED ramp from LEDSON

Driving Beam light image

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlights and light image.

V 2.0 means that the bar is delivered with dual mounting options:

• Side-mounted legs that can rotate around their own shoulder to angle the ramp
• Slidable, rear mounted brackets that can be adjusted along the entire bar for a flexible mounting

What's needed?

• DT-relay: We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.
• Mounting on the vehicle: The bar is so small that the number plate holders we sell do not work. Instead, you have to find another space on the vehicle to attach the bar (eg fold it in the front or bolt into appropriate place)

Characteristics:

• E-marked (E8, ref. 30), ECE R112 / R10
• "Driving beam" light image (wide and oblong)
• 5400 lumen (theoretical), 4644 lumen (actual)
• Color temperature 6500K (cold white)
• Range 788m (0.25 lux), 394m (1 lux)
• Dual mounting options
• Double mounting (put together two LED bars) with our mounting kit!

Technical data:

• 60 W (12 x 5 W LG LED)
• IP68 (water / dustproof)
• Electronic heat management
• Aluminum casing and polycarbonate lens
• 3.8 A at 12 V and 1.66 A at 24 V
• Sido-reflective optics
• DT connector (supplied, black cable is ground and red cable is 9-30V DC)

Dimensions & Weight:

• Width: 353 mm
• Height: 38.5 mm
• Depth: 68 mm
• Weight: 0.8 kg
