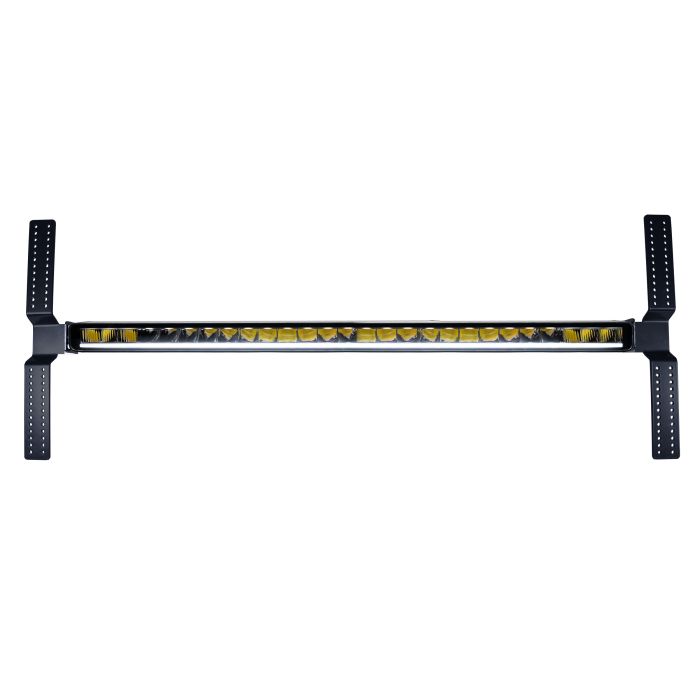

Orbix31+ LED bar package for Scania

LED bar kit for Scania Next Generation, model year 2016 and newer. With our custom-designed and Swedish-made mounting kit, you get a quick and cost-effective installation. You can mount the light bar either discreetly behind the front grille or let the light bar protrude through the grille.

Included in the package:

• Orbix31+ 31" LED bar 135W (item 33502755)
• Installation kit with all necessary components for an easy and quick setup, including installation instructions

It's in the details - and this detail is a real eye-catcher! Orbix 31" from Ledson is equipped with a modern position light with dynamic ignition.

The Orbix31+ position light ignites with a unique fluid motion that guides the light from one side of the bar to the other before lighting up. A dynamic sequence that makes you stand out from the crowd and elevates your vehicle's appearance to a whole new level.

The bar is E-marked according to ECE R149 and has a Drive beam pattern that optimally enhances your vehicle's existing high beam to reach both longer and wider. Of course, you can choose to have your position light in modern cool white or a rawer amber.

A high IP69K rating and aluminum housing with polycarbonate lens ensure Orbix+ gives you a safer drive and a better look, of course with Ledson's unbeatable 36 month warranty.

Driving Beam pattern (Drive)

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.

Features:

• Position light with dynamic ignition, which means that it lights up with a motion pattern
• Selectable position light, white or amber
• E-mark ECE R149/R10
• ”Driving beam” light pattern (wide and elongated)
• Range 525 m at 1 lux
• 11340 lumen (raw), 10125 lumen (effective)
• Color temperature 5700K (cool white)

Technical data:

• 135 W (27 x 5 W LED)
• Voltage: 10-32V
• IP69K (water / dust-tight)
• Aluminum casing and polycarbonate lens
• DT-connector (included)

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
