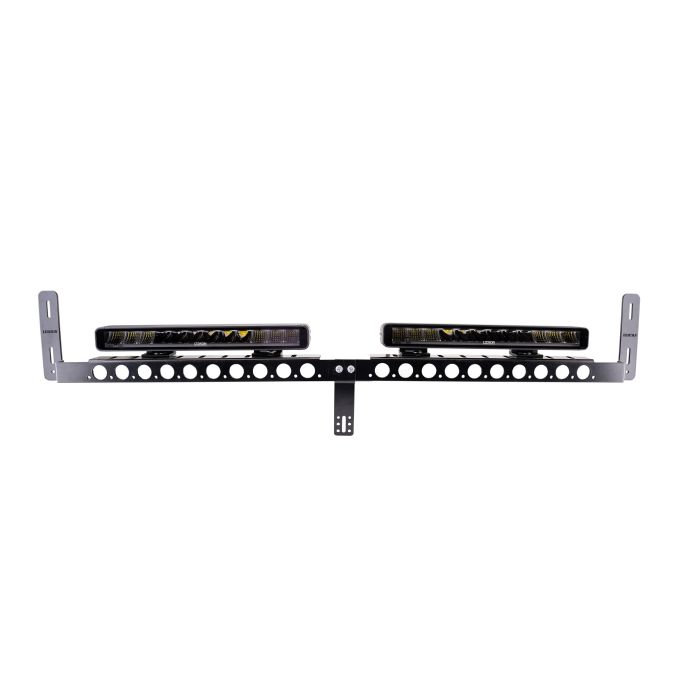

2 x Orbix+ 14" LED bar package for Volvo FH 14-20

Ledson 2 x Orbix14+ LED bar kit for Volvo FH, from model year 2014-2020. With our custom-designed and Swedish-made mounting kit, you get a quick and cost-effective installation. You can mount the light bar either discreetly behind the front grille or let the light bar protrude through the grille.

Additionally, the package includes an adapter cable that simplifies connecting the LED light bar's DT connector to the pre-wired truck harness located behind the front panel/grille. See mounting instructions here

Included in the package:

• x 2 Orbix14+ LED bars (item no 33501255)
• Installation kit with all necessary components for an easy and quick setup, including installation instructions
• Adapter cable with Volvo connector (3-pole Volvo to 2-pole DT)
• DT Branch (1 male to 2 females)
• DT extension male/female (40cm)

Orbix14+ x 2

It's in the details - and this detail is a real eye-catcher! Orbix 14" from Ledson is equipped with a modern position light with dynamic ignition.

The Orbix14+ position light ignites with a unique fluid motion that guides the light from one side of the bar to the other before lighting up. A dynamic sequence that makes you stand out from the crowd and elevates your vehicle's appearance to a whole new level.

The bar is E-marked according to ECE R149 and has a Drive beam pattern that optimally enhances your vehicle's existing high beam to reach both longer and wider. Of course, you can choose to have your position light in modern cool white or a rawer amber.

A high IP69K rating and aluminum housing with polycarbonate lens ensure Orbix+ gives you a safer drive and a better look, of course with Ledson's unbeatable 36 month warranty.

Features (per led-bar):

• Position light with dynamic ignition, which means that it lights up with a motion pattern
• Selectable position light, white or amber
• E-mark ECE R149/R10
• ”Driving beam” light pattern (wide and elongated)
• Range 300 m at 1 lux
• 5040 lumen (raw), 4500 lumen (effective)
• Color temperature 5700K (cool white)
• Two mounting options

Technical data (per led-bar):

• 60 W (12 x 5 W LED)
• Voltage: 10-32V
• IP69K (water / dust-tight)
• Aluminum casing and polycarbonate lens
• DT-connector (included)

Dimensions & weight (per led-bar):

• Width: 367 mm
• Height: 42 mm
• Depth: 58 mm
• Weight: 1,45 kg

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint is included with the product.
