EPIX30+ Strobe LED bar package for Volvo FH

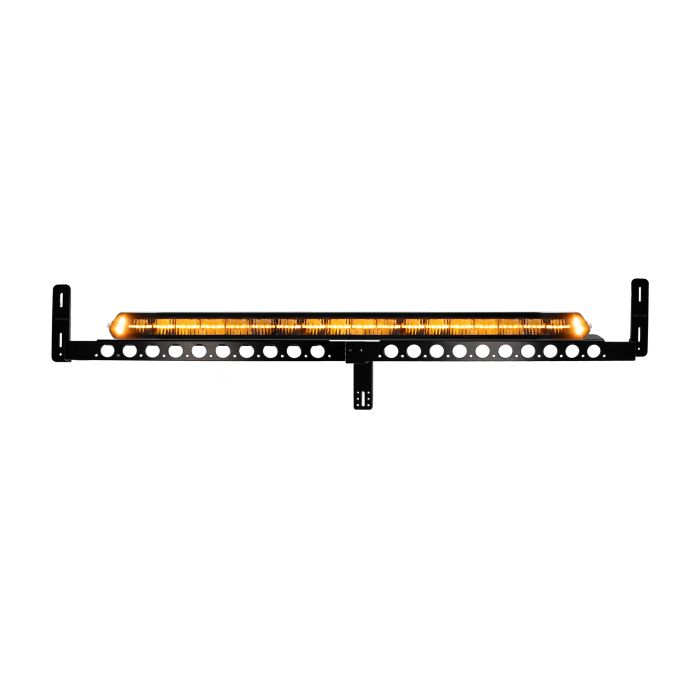

Ledson EPIX30+ LED bar kit for Volvo FH, up to model year 2014 to 2020.

With our custom-designed and Swedish-made mounting kit, you get a quick and cost-effective installation. You can mount the light bar either discreetly behind the front grille or let the light bar protrude through the grille.

Additionally, the package includes an adapter cable that simplifies connecting the LED light bar's DT connector to the pre-wired truck harness located behind the front panel/grille. See installation instructions here.

Included in the package:

• 30" EPIX30+ Strobe LED- bar (item number 334915189)
• Installation kit with all necessary components for an easy and quick setup, including installation instructions
• Adapter cable with Volvo connector (item number 33459051)

Treat yourself to the best. Epix+ stands out from the crowd with a self-developed sporty design, created with today’s modern vehicle in mind. One world-unique feature is its position lights, fully integrated into the reflector.

The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in a LED bar, you’ll find with Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go ”off-road". Approved R65 strobe lights ensure your visibility when working on the road and keep you safe in all weather and times of the day. Self-developed smart mounts ensure easy installation almost anywhere on the vehicle, however you prefer.


Epix+ is for you who want a futuristic experience

The design of the bar is uniquely developed by Ledson and is in harmony with today's most modern trucks, taking your vehicle to the next level. Its dynamic position light turns on with a powerful movement that neatly guides the light from one side of the bar to the next before fully lighting up. The position light is integrated into the reflector, a completely unique feature that makes you stand out a little extra.


Powerboost: how much light do you want?

As if this wasn’t enough to look forward to, you also have the option to use Powerboost. Simply tighten or loosen the screw in the back of the LED bar to switch between E-approved mode or ”off road” Powerboost mode, for occasions when you need maximum brightness on the road ahead.

Driving Beam light pattern

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the vehicle's existing headlight and light pattern.

Features and technical data:

• R65 approved strobe lights with 10 different strobe patterns
• Position light with unique dynamic ignition, integrated in the reflector
• Selectable position light in xenon white or yellow/orange
• Driving Beam light pattern (wide and oblong)
• E-marked R112, R7, R10 (EMC rated)
• Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
• 23,200 lumens (theoretical), 16,300 lumens (actual)
• Color temperature 5000K (Neutral White)
• 270 W (18 x 15 W LEDs)
• Voltage: 9-36V
• IP69K (water/dustproof)
• Aluminum housing and polycarbonate lens
• Side reflective optics
• Pressure equalization membrane
• Electronic heat management
• 1 x DTP connector 2 pole (LED bar high beam) and 1 x DT connector 4 pole (LED bar position light and strobe light)

Dimensions & weight of the LED bar (excl mounting):

• Width: 740 mm
• Height: 43 mm
• Depth: 61 mm
• Weight: 2.25 kg

Flash patterns:

1. Single flash synchronization: 2.2HZ
2. Single flash asynchronous: 2.2HZ
3. Triple flash synchronization: 1.1HZ
4. Triple flash asynchronous: 1.1HZ
5. Quadruple flash synchronization: 1.25HZ
6. Quadruple flash asynchronous: 1.25HZ
7. Combination of one long and five short synchronization: 0.83HZ
8. Combination of one long and five short asynchronous: 0.83HZ
9. Burst flash synchronization: 10HZ
10. Burst flash asynchronous: 10HZ

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
