Package with Alfa 30" for Volvo FH

€504.39 €403.51
€504.39 €403.51
Retailer price €504.39 Retailer price €403.51
In stock
SKU
1360231

Alfa Powerboost 30" with mounting for Volvo FH 2014-2020
 Without Powerboost: 466m (1 lux), E-marked ECE R112 / R10
 With Powerboost: 673m (1 lux), ECE R10

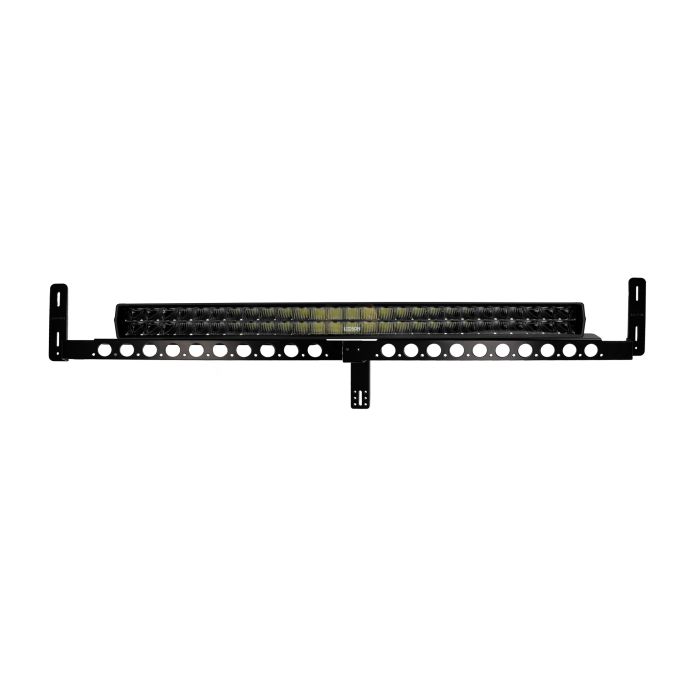

Ledson Alfa 30" with PowerboostLED bar kit for Volvo FH model year 2014 to 2020. With our custom-designed and Swedish-made mounting kit, you get a quick and cost-effective installation. You can mount the light bar either discreetly behind the front grille or let the light bar protrude through the grille.

Additionally, the package includes an adapter cable that simplifies connecting the LED light bar's DT connector to the pre-wired truck harness located behind the front panel/grille.
See installation instructions here.

Included in the package:



Alfa Powerboost 30" (765 mm)

Alfa Powerboost lets you choose whether you want to drive with an E-marked ECE R112 LED bar and 1 lux brightness at 466 meters or with a little extra lighting power with Powerboost activated and 1 lux at 673 meters and 20,600 actual lumens (not E- marked). You can easily select this by connecting a third cable!



Characteristics:

  • Combo Beam light pattern
  • E-marked ECE R112 (ref. 50) NOTE: only when Powerboost is not activated - Read more about UNECE regulations here
  • ECE R10 (EMC secured)
  • Range without Powerboost: 466 m (1 lux)
  • Range with Powerboost: 673 m (1 lux)
  • Lumen without Powerboost: 12150 lm (theoretical), 10300 lm (actual)
  • Lumen with Powerboost: 24300 lm (theoretical), 20600 lm (actual)
  • Color temperature 6000K (cold white)



Technical data:

  • 270 W (54 x 5 W LED)
  • IP68 (water / dust tight)
  • IP69K: withstands hot water under pressure
  • Aluminum housing and polycarbonate lens
  • ATP connector (included)
  • Voltage: 9-36V



Dimensions & weight (excl. brackets):

  • Width: 765 mm
  • Height: 58 mm
  • Depth: 53 mm



NOTE: The ATP connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. ATP connector (male) with joint included with the product.

Technical information
Color 6000K
Warranty 36 Månader
Width 765 mm
Unit pkt
Light flux 12150 lm (faktiska 10300), Powerboost: 24300 lm (faktiska 20600)
Cable length 500mm
Depth 53mm
Power usage 12V/24V 10,2A / 7,5A
Height 58mm
