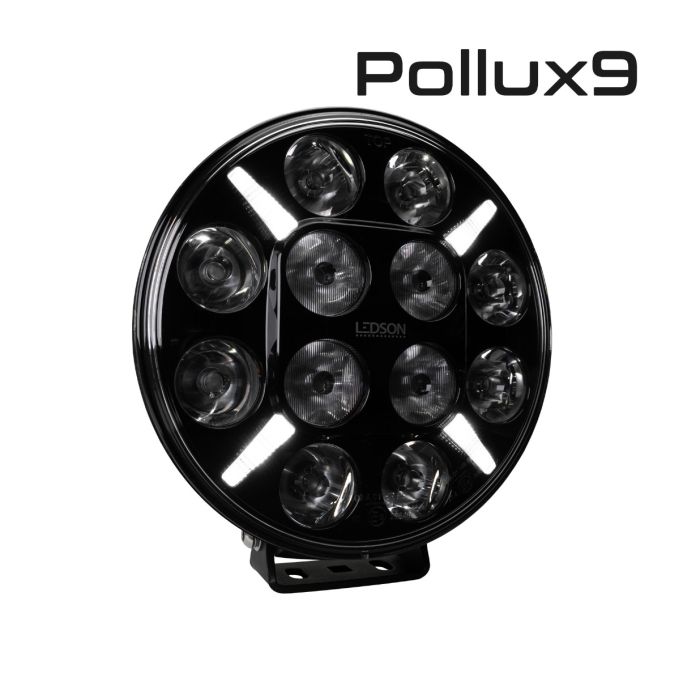

LEDSON Pollux9 LED auxiliary light 120W (E marked, Driving/Spot Beam)
✓ Pollux9 is a dominant black 9 "LED auxiliary light with attractive position lights!
✓ E-marked ECE R112 / R10 / R7
✓ Choose between Driving Beam or Spot Beam
Pollux9: Tough Black 9" with position light!
Unit price when buying 8+ = 1524:- SEK excl. VAT *
Unit price when buying 24+ = 1460:- SEK excl. VAT *
* The price is automatically adjusted at checkout
A distinctive and large 9" auxiliary light in modern black for those who want something tougher than the traditional "tame" look of the auxiliary lights today. Comes with a 36 month warranty
✔ Tough black 9" LED auxiliary light with eye-catching position light!
✔ E-marked (E8 ref.37.5), ECE R112 / R10
✔ Equipped with TIR Optical System (Total Inner Reflection)
Â
Â
Driving Beam light image
Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.
Â
Spot Beam light image
A spot beam has a focused beam of light straight ahead to bring light further down the road in the maximum possible way. This is ideal if you drive a lot of highway or on major roads. Also known as auxiliary beam image.
Â
Mounting on the vehicle
- Can be mounted smoothly and nicely with a number plate holder. See our various accessories for mounting options.
Â
Characteristics:
- Choose between Driving beam or spot beam
- Driving Beam: E-marked (E8, ref. 37.5), ECE R112 / R10
- Spot Beam: E-marked (E8, ref. 50), ECE R112 / R10 - Read more about UNECE regulations here
- Driving Beam:Â 850 m (0.25 lux), 425 m (1 lux)
- Spot Beam:Â 1090 m (0,25 lux), 545 m (1 lux)
- With position light (4 LEDs)
- 12000 lumen (theoretical), 9600 lumen (actual)
- Cold white light (6500 K)
- TIR Optical System (Total Inner Reflection)
- 36 month warranty
Â
Technical data:
- 120 W (12 x 10 W LG LED)
- IP68 (water / dust-tight)
- DT connector (supplied)
- Electronic heat management
- Voltage 9-36 V
- Load 7.7 A @ 12 V and 3.6 A @ 24 V
- Dimensions & Weight:
Â
Dimensions & Weight:
- Width: 218 mm
- Height: 234.5 mm (incl bracket)
- Depth: 68.5 mm
- Weight: 1.9 kg
Beam pattern | Kombination |
---|---|
Light flux | 12000 lumen (teoretiska), 9600 lumen (faktiska) |
Cable length | 650 mm |
Depth | 68,5 mm |
Diameter (mm) | 218 mm |
Number of diodes | 12 st 10W Cree XM-L2 LED |
Theoretical output | 120W (nominell effekt 92W) |
Power usage 12V/24V | 7,7 A @ 12 V och 3,6 A @ 24 V |
Power usage 12V/24V | 7,7 A @ 12 V och 3,6 A @ 24 V |
Height | 234,5 mm (inkl fäste) |
Use of power | 92,4 W |
Width | 218 mm |
Range | 850 m (0,25 lux), 425 m (1 lux) |
E-mark | Ja |
Charging time (warm to full strength) | Omedelbar |
Color | Xenon white |
Tillverkare | Ledson |
Start time | Immediate |
Warranty | 36 Months |
