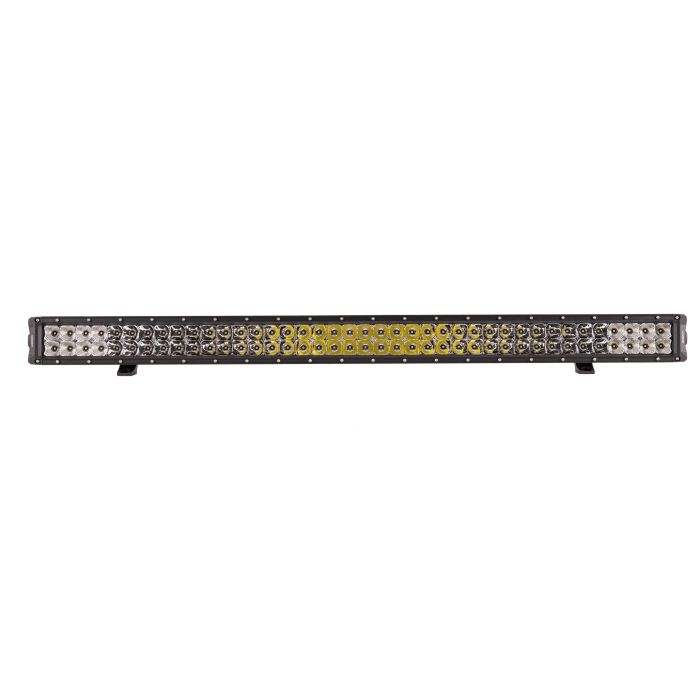

LED bar 41,5" 240W Hi-LUX (V2.0, combo)

€436.39 €349.11
€436.39 €349.11
Retailer price €436.39 Retailer price €349.11
In stock
SKU
33303808

 Hi-Lux provides full power in all diodes
 Significant amounts of light towards the sides of the road
 V2.0 = Dual mounting options

107 cm wide LED bar, EMC-secured with pressure equalization membrane and double mounting options.



Hi-Lux LED

A LED lightbar equipped with Hi-Lux has what we call "maximized diodes". This means that you get the most possible power from each LED to deliver as much light as possible when the LEDbar is lit - for maximum brightness!



Combined beam pattern (combo)

A combined beam pattern is a mixture of high beam (distance) and river light (width). The ramp has diodes that reflect light both straight ahead and to the sides. This light image is ideal if you want a lot of light near the vehicle for the smaller roads but still have the length to light up the road far ahead.



V2.0 means that the bar is delivered with double mounting options:

  • Side-mounted legs that can be rotated around their own axis to angle the bar
  • Slidable, rear-mounted brackets that can be adjusted along the entire bar for a very flexible mounting



What more is needed?

  • DTP/ATP-relay: We strongly recommend using our DTP/ATP relay (part no 7800301) with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DTP/ATP relay.
  • Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and more stylish using a number plate holder. We recommend part 3346053 for a flexible mounting.



Features:

  • Total power: 240W
  • Range: 1273 m (0,25 lux)
  • LED life 30 000 hours
  • Voltage: 10-30V
  • IP67 (water and dustproof)
  • 15.9A @ 12V and 7.1A @ 24V
  • Color temperature: 6000K
  • Housing in aluminum
  • Polycarbonate lens
  • EMC secured
  • Pressure equalization membrane
  • Beam pattern: Combined (combo) 8 degree spot and 90 degree flood
  • Double mounting options: side mounted legs (in two heights) and slidable brackets
  • DTP/ATP connector (included)



Dimensions & weight:

  • Width: 1073 mm
  • Height: 78,5 mm
  • Depth:  65 mm

Be careful not to cut the DTP/ATP-cord, since that will void the warranty and increase the risk of water damage.

Technical information
Power 240W
Manufacturer Ledson
Color 6000K
Warranty 36 Månader
Use of power 165,6 W
Unit st
Dispersion Array
Number of contacts 1 x ATP-connector with 2-pole
Light flux 21600 lumen
Cable length 1 m
Depth 65 mm
Power usage 12V/24V 13,8 / 6,9 A
Height 78,5 mm
Length (mm) 1073 mm
