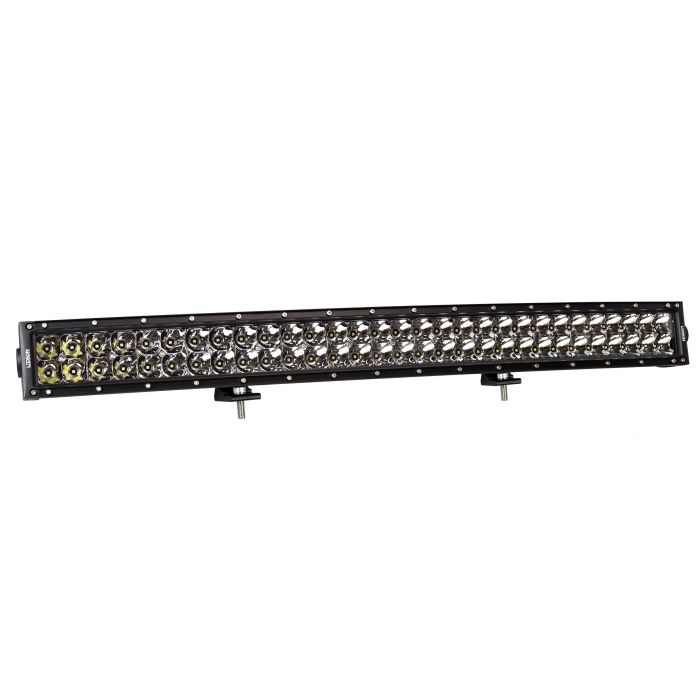

LED-bar 31,5" 60x3W Hi-LUX - curved

€339.29 €271.43
€339.29 €271.43
Retailer price €339.29 Retailer price €271.43
In stock
SKU
33303603

 Range: 825 meter (0,25lux)
 16200 lumen from 60x3W Osram diodes
 818x78,5x111,6 mm (BxHxD) och IP67

The curved LED bar is best described as solid and powerful with its 60 3W Osram diodes which give a total of 180W. Because of the bars curved design the light is spread more efficiently to the sides which gives the light bar a combined beam pattern of light both to the sides and in front.

For a more smooth and flexible mounting artno 3346053.


Specifications:

  • 60 x 3W Osramdiodes
  • 16200 lumen
  • Total power: 180W
  • Range: 825m (0,25 lux)
  • Voltage: 10-30 V
  • IP67 (water/dust proof)
  • 10,9 A @ 12 V and 5.3 A @ 24 V
  • Color temperature: 6000K
  • Housing in aluminum
  • EMC secured
  • Pressure equalization membrane
  • Beam pattern: spot (8 degrees) and flood (90 degrees)
  • Adjustable side bracket
  • ATP connector (included)
  • Maximized reflectors



Measurements:

  • Width: 818 mm
  • Height: 78,5 mm
  • Depth: 87 mm
  • Weight: 4,85 kg
  • Depth of curved recess: 26 mm



OBS: You must not cut off a piece of the ATP-connector since it increases the risk of water and/or damp damage. If the connector has been cut off the guarantee does no longer apply. ATP-connector (male) with joint is included with the product.

Technical information
Manufacturer Ledson
Voltage 10-30 V
Color 6000K
Warranty 36 Månader
Choice V2.0 Sidomonterade ben och glidbara fästen
Power 180W
Number of contacts 1 x ATP-connector with 2-pole
Height 78,5 mm
Length (mm) 818 mm
Use of power 124,8 W
Depth (mm) 87 mm
Power usage 12V/24V 10,4 / 5,2 A
Height 78,5 mm
Längd (mm) 818 mm
Light flux 16200 lumen
Cable length 1 m
Depth 87 mm
Polarity dependent No
Elektronisk värmekontroll (ETM) No
Pressure equalization membrane No
Unit st
