Complete 21,5" Hi-Lux LED bar kit (12V)

A Hi-Lux LED bar package with a lot of power!

You get a Hi-Lux LED bar with number-plate holder that is custom made for this particular bar, ie with a perfect fit. The supplied DT relay kit also allows you to either turn on the LED bar with your existing main beam (as most prefer) or steer the bar with an on and off button.

This light bar is equipped with Hi-Lux, what we call "maximized diodes". This means that you get the most power out of each LED to deliver as much light as possible when the bar is lit - for those who want maximum brightness! A solid LED bar from LEDSON that provides a combined beam pattern of 120W and 10800 lumens! Equipped with 40 Osram diodes (Hi-LUX), aluminum housing and IP67 enclosure class.

Review: "Driving in pitch darkness for the first time with this diode bar. A stream of light!"

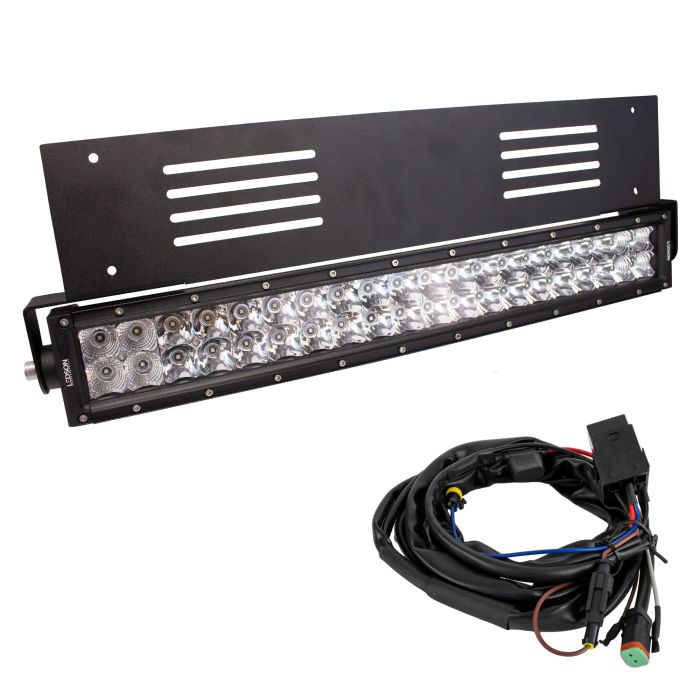

The following is included in the package:

• 1 x 21,5" LEDSON Hi-Lux LED bar (part 33303406)
• 1 x custom made holder (part 3346060)
• 1 x Ledson Connect (part 3346005)
• 1 x locking strip for license plate holder

Characteristics LED-bar:

• 40 pcs 3W Osram diodes
• Hi-LUX means higher lumen thanks to Osram diodes
• Range: 1166 m (0.25 lux), 583 m (1 lux)
• 10800 lumen
• Total 120W
• Combined beam pattern
• Cold white light (6000K)
• Pressure equalization membrane
• EMC secured
• Aluminum house
• Side-mounted legs and sliding brackets
• DT connector
• Maximized reflectors
• IP67 enclosure rating
• 10-30V
• 8.2A @ 12V and 4.1A @ 24V

Dimensions & Weight LED bar:

• Width: 563 mm
• Height: 78,5 mm
• Depth: 86,5 mm
• Weight: 3,5kg

NOTE: The DT connector must not be cut because it increases the risk of moisture damage and the warranty will cease to apply. DT connector (male) is included with the product..
