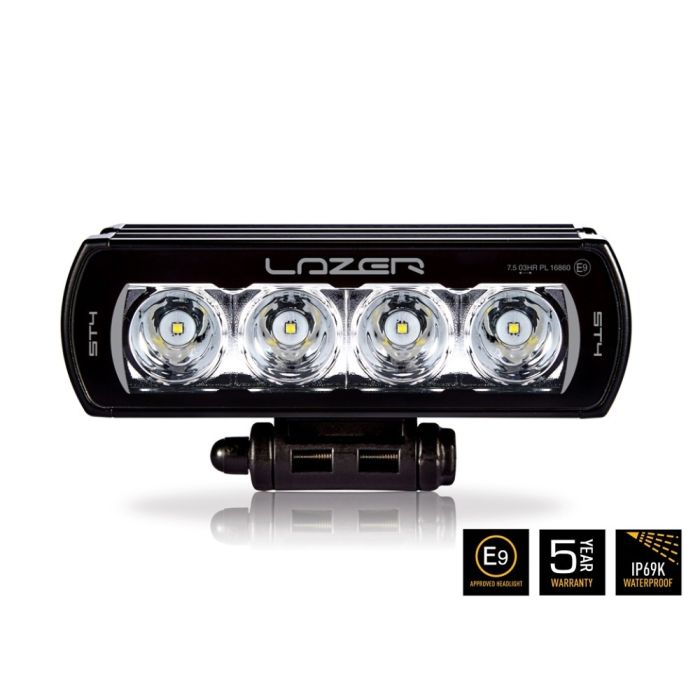

Lazer ST4 Evolution (E-marked, Drive beam pattern)

Upgraded and with new design: ST4 Evolution is a versatile LED bar with a size that proved to be particularly popular with pickup trucks and 4x4. With its 204mm width, ST4 still delivers incredible light amounts to its minimal size. E-approval ensures that the bar can be fully integrated into the car's existing electrical system.

Like all ST Evolution segment products, ST4 Evolution has upgraded high-density 11W LED, specially handpicked for their quality, delivering 4136 lumens! Advanced electronic design combined with sophisticated thermostatic cooling and extremely efficient vacuum-metallized reflectors collect the light in a Drive beam pattern optimized for lower speeds where priority is a good all-round visibility. The color temperature is 5000K, carefully chosen to maximize sharpness and definition, and is also proven to reduce eye strain caused by some higher color temperatures (blue-white).

In addition to the performance, ST4 Evolution is built to last. With a 5-year warranty as standard and a lifetime guarantee on the "indestructible" polycarbonate lens, coated with a hard coating to protect against scratches, the lamp is also capable of confronting the most difficult circumstances. An IP69K rating ensures that the ramp will not be affected by moisture and dirt as time goes by. Additional measures are also taken to ensure full functionality even in the most extreme temperatures and environments. The aluminum housing gives the lamp its strength and sturdiness while a specially treated surface ensures it is resistant to corrosion. The life of the diodes is also optimized with a dynamic drive that controls the brightness depending on the circumstances you drive in. (High dirt reduces power and a clean unit has the maximum power).

With a minimalist character, the new ST Evolution series is not only easier to mount, but also has good resistance to dirt, snow and ice, and its design fuses perfectly even today's modern vehicles.

Included
- x1 ST4 Evolution LED Spotlight
- x1 centered mount
- x1 wiring and installation instructions

Specifications:

• E-approved (ECE R112)
• Voltage: 10-32V
• Actual Lumen: 4136
• Beam pattern: Drive
• 4 high performance 11W LED
• Power: 47 Watt
• Load (at 14,4V): 3,3 Ampere
• LED life: 50.000 timmar
• Weight: 670 g

Light amount (lux):

• 0,25 lux: 555 meters
• 0,5 lux: 393 meters
• 1 lux: 278 meters
• 3 lux: 160 meters

Measurements:

• Width: 204 mm
• Height: 64 mm
• Depth: 68 mm
