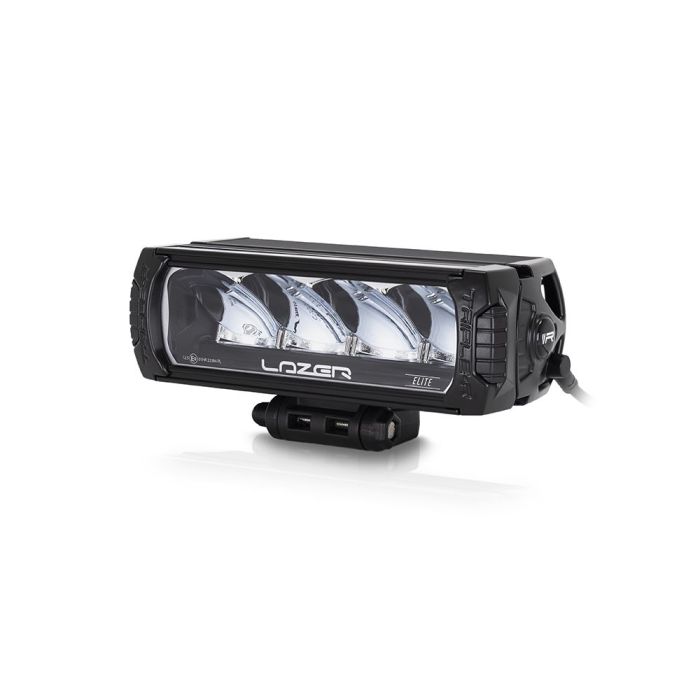

Lazer LED bar Triple-R 750 Elite Gen2 (E-boost)
✓ Generation 2, an upgrade of Triple R 750 Elite
✓ 517m / 231m at 1 lux (E-boost and E-marked respectively)
✓ E-boost for optional Turbo performance!
Lazer Triple-R 750 Elite with E-Boost (Generation 2)
Triple-R 750 Elite is equipped with "E-Boost" technology, which means that it has properties that usually only have two separate products have.
With an E-Boost cover, this quality lighting is incredibly strong and delivers a crystal clear field of view with natural white light to guarantee safety when driving off public roads. Remove the cover and a contactless switch comes loose so that the lighting becomes roadworthy and E-approved.
In E-approved mode, 1 lux brightness is obtained at 231 meters and with E-boost activated, you instead get light that extends a full 517 meters with 1 Lux brightness. This type of extreme lighting performance is usually only found in the rally and racing world.
Â
Triple-R beam pattern
Triple-R distributes a different light compared to e.g. ST4 or RS4 from Lazer. Triple-R has specially sharpened reflectors with vacuum-metallised optics for best beam pattern. This gives a distant, narrow and even spread (spot) perfect for the longer roads. The optical effect is at a respectable 92%!
Â
5 year warranty
All of Lazers products are delivered with an incredible 5 year warranty. Lazer has made an effort to develop a product of the highest quality to withstand all conceivable stress and weather and therefore you will be replaced with a new product if it breaks down during this time. Among other things, the LED bar is IP67-rated, has 'unbreakable' polycarbonate glass and a very solid housing that protects its valuable inside.
Â
Lazer and the demanding world of racing
Lazer has one foot firmly placed in the world of racing and rally and has established itself as a supplier of performance lighting to be trusted. During these competitions, the lighting is exposed to very extreme stresses: dirt and water, shocks and shaking - they handle this without any problems. A telling example is the Breslau Rally, which is Europe's largest off-road race, which Lazer proudly sponsors! Breslau Rally video (Youtube)
Â
Specifications:
- "E-boost" (E-marked or with boost and extra light strength)
- E-marked ECE R112 (without E-boost) with ref. 12,5
- 1033m / 462m at 0,25 lux (E-boost and E-marked respectively)
- 517m / 231m at 1 lux (E-boost and E-marked respectively)
- Brightness: 5068 lumen / 1267 lumen (E-boost and E-marked respectively)
- Optics of the highest quality (92% optical efficiency)
- 4 x 11W LED (upgraded for 2020/2021)
- Power consumption 45W / 11,5W (E-boost and E-marked respectively)
- Includes centered bracket with the option of side mounting (the latter sold separately)
- CAE optimised heatsink offers improved thermal dynamics
- "Unbreakable" polycarbonate glass
- IP67 (water and dust tight)
- Designed and manufactured in England
- Spot beam pattern
- Voltage: 9V-32V
- LED lifespan 50 000 hours
- 5 year warranty
Â
Dimensions & weight:
- Width: 230mm (270mm incl. side mounted brackets (not included))
- Depth: 105mm
- Height: 73mm (103mm incl. centered mount)
- Weight: 1kg
Installation Lazer Triple-R 750 Elite Generation 2 (PDF)
Triple-R 750 Elite information (PDF)
Â
Â
Â
Â
Tillverkare | Lazer |
---|---|
Power usage 12V/24V | 3,1 A vid 14,4 V (E-boost), 0,8 A vid 14,4 V (E-märkt) |
Height | 73 mm (103 mm inkl ev. fästen) |
Use of power | 45 W (E-boost), 11,5 W (E-märkt) |
Width | 230 mm (270 mm inkl. ev. sidomonterade fästen) |
Depth | 105 mm |
Light flux | 5068 lumen / 1267 lumen |
Cable length | 310 mm |
Warranty | 5 years |
Unit | st |
