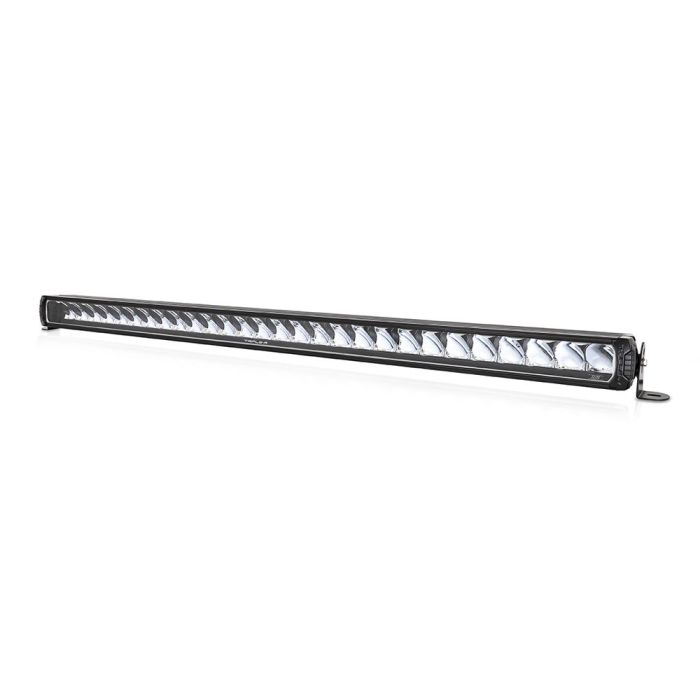

Lazer Triple-R 28 Elite (Generation 2)

A 2020/2021 upgrade of the Triple-R 28 through the latest LED technology and modified optics! This Lazer LED bar has been born through massive testing at the highest level in the professional rally and motorsport world. Triple-R represents the elite level in LED auxiliary lighting technology. Small, subtle upgrades have led to a clean design with a slightly aggressive tone to match the appearance of modern cars.

Triple-R beam pattern

Triple-R distributes a different light compared to e.g. ST4 or RS4 from Lazer. Triple-R has specially sharpened reflectors with vacuum-metallised optics for best beam pattern. This gives a distant, narrow and even spread (spot) perfect for the longer roads. The optical effect is at a respectable 92%!

5 year warranty

All of Lazers products are delivered with an incredible 5 year warranty. Lazer has made an effort to develop a product of the highest quality to withstand all conceivable stress and weather and therefore you will be replaced with a new product if it breaks down during this time. Among other things, the LED bar is IP67-rated, has 'unbreakable' polycarbonate glass and a very solid housing that protects its valuable inside.

Lazer and the demanding world of racing

Lazer has one foot firmly placed in the world of racing and rally and has established itself as a supplier of performance lighting to be trusted. During these competitions, the lighting is exposed to very extreme stresses: dirt and water, shocks and shaking - they handle this without any problems. A telling example is the Breslau Rally, which is Europe's largest off-road race, which Lazer proudly sponsors! Breslau Rally video (Youtube)

 Specifications:

• 2506m at 0,25 lux
• 1253m at 1 lux
• Brightness: 28560 lumen
• Optics of the highest quality (92% optical efficiency)
• 28 x 13W LED (uppgraded for 2020/2021)
• Power consumption 326 Watt (28 A at 14,4V)
• Includes centered bracket with the option of side mounting (the latter sold separately)
• Electronic Thermal Management
• CAE optimised heatsink offers improved thermal dynamics
• "Unbreakable" polycarbonate glass
• IP67 (water and dust tight)
• Designed and manufactured in England
• Spot beam pattern
• Voltage: 9V-32V
• LED lifespan 50 000 hours
• 5 year warranty

Dimensions & weight:

• Width: 1305mm (1345mm incl. side mounted brackets (not supplied))
• Depth: 105mm
• Height: 73mm (103mm incl. centre mount)
• Weight: 4780g

Installation Lazer Triple-R 28 Elite Generation 2 (PDF)
