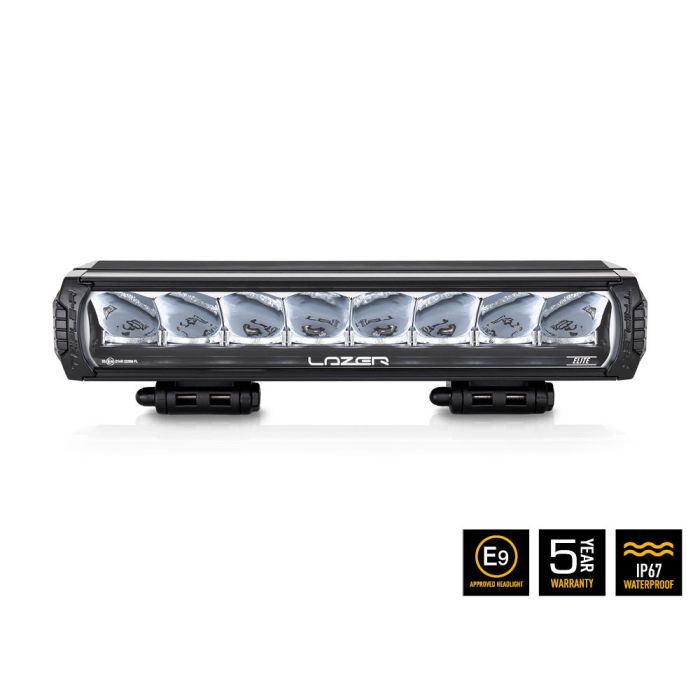

Lazer Triple-R 1000 Elite with E-boost (Generation 2)

Triple-R 1000 Elite is equipped with "E-Boost" technology, which means that it has properties that usually only have two separate products have.

With an E-Boost cover, this quality lighting is incredibly strong and delivers a crystal clear field of view with natural white light to guarantee safety when driving off public roads. Remove the cover and a contactless switch comes loose so that the lighting becomes roadworthy and E-approved.

In E-approved mode, 1 lux brightness is obtained at 304 meters and with E-boost activated, you instead get light that extends a full 679 meters with 1 Lux brightness. This type of extreme lighting performance is usually only found in the rally and racing world.

Triple-R beam pattern

Triple-R distributes a different light compared to e.g. ST4 or RS4 from Lazer. Triple-R has specially sharpened reflectors with vacuum-metallised optics for best beam pattern. This gives a distant, narrow and even spread (spot) perfect for the longer roads. The optical effect is at a respectable 92%!

5 year warranty

All of Lazers products are delivered with an incredible 5 year warranty. Lazer has made an effort to develop a product of the highest quality to withstand all conceivable stress and weather and therefore you will be replaced with a new product if it breaks down during this time. Among other things, the LED bar is IP67-rated, has 'unbreakable' polycarbonate glass and a very solid housing that protects its valuable inside.

Lazer and the demanding world of racing

Lazer has one foot firmly placed in the world of racing and rally and has established itself as a supplier of performance lighting to be trusted. During these competitions, the lighting is exposed to very extreme stresses: dirt and water, shocks and shaking - they handle this without any problems. A telling example is the Breslau Rally, which is Europe's largest off-road race, which Lazer proudly sponsors! Breslau Rally video (Youtube)

Specifications:

• "E-boost" (E-marked or with boost and extra light strength)
• E-marked ECE R112 (without E-boost) with ref. 25
• 1358m / 607m at 0,25 lux (E-boost and E-marked respectively)
• 679m / 304m at 1 lux (E-boost and E-marked respectively)
• Brightness: 10136 lumen / 2534 lumen (E-boost and E-marked respectively)
• Optics of the highest quality (92% optical efficiency)
• 8 x 11W LED (upgraded for 2020/2021)
• Power consumption 104W / 23W (E-boost and E-marked respectively)
• Includes centered bracket with the option of side mounting (the latter sold separately)
• CAE optimised heatsink offers improved thermal dynamics
• "Unbreakable" polycarbonate glass
• IP67 (water and dust tight)
• Designed and manufactured in England
• Spot beam pattern
• Voltage: 9V-32V
• LED lifespan 50 000 hours
• 5 year warranty

Dimensions & weight:

• Width: 410mm (450mm incl. side mounted brackets (not included))
• Depth: 105mm
• Height: 73mm (103mm incl. centered mount)
• Weight: 1,7kg

Installation Lazer Triple-R 1000 Elite Generation 2 (PDF)

Triple-R 1000 Elite information (PDF)
