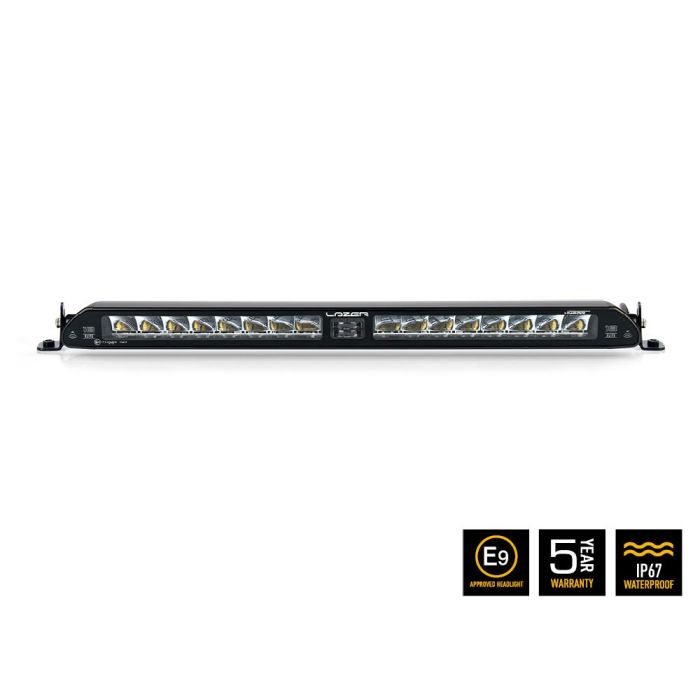

Lazer LED bar Linear 18 Elite I-LBA

Note: Order item

Lazer Linear 18 Elite with an Intelligent Low Beam Assist

Lazer Linear 18 Elite I-LBA comes with an Intelligent Low Beam Assist which ensures that you have additional lighting when you turn off the high beam in favor of the low beam, for example when there are oncoming cars. Low Beam Assist scans the road 30 times per second to detect oncoming cars and then it reduces the lighting in the direction of the oncoming car while keeping the additional light along the edge of the road to be able to detect obstacles, cyclists or pedestrians, for example.

This technology is best suited for driving on unlit country roads and does not work when driving in the city or driving whan the high beams have not been activated for more than three seconds.

Lazer Linear 18 Elite I-LBA is also equipped with "E-Boost" technology, which provides better and optimized light when using the high beam. With an E-Boost cover, this quality lighting is incredibly strong and delivers a crystal clear field of view with natural white light to ensure safety when driving off public roads. Remove the cover and a contactless switch is released so that the lighting is roadworthy and E-approved, but of course still with really impressive brightness.

In E-approved mode, 1 lux brightness is obtained at 286 meters and with E-boost activated, you instead get light that extends a full 522 meters.

By using Lazer Linear 18 Elite with Intelligent Low Beam Assist, you improve safety and experience during your driving experience.

Before ordering the product, we recommend that you watch our videos about the product so that you are aware of the benefits and also the limitations of the technology.

5 year warranty

All of Lazers products are delivered with an incredible 5 year warranty. Lazer has made an effort to develop a product of the highest quality to withstand all conceivable stress and weather and therefore you will be replaced with a new product if it breaks down during this time. Among other things, the LED bar is IP67-rated, has 'unbreakable' polycarbonate glass and a very solid housing that protects its valuable inside.

Specifications:

• "E-boost" (E-marked or with boost and extra light strength)
• E-marked ECE R112 (without E-boost) with ref. 17,5
• 1043m / 571m at 0,25 lux (E-boost and E-marked respectively)
• 522m / 286m at 1 lux (E-boost and E-marked respectively)
• Brightness: 18000 lumen / 5538 lumen (E-boost and E-marked respectively)
• Optics of the highest quality (92% optical efficiency)
• 48 x 11W LED
• Power consumption: 135W / 43W (E-boost and E-marked respectively)
• At 14,4V: 10,4A / 3,2A (E-boost respektive E-märkt)
• Includes centered bracket with the option of side mounting (the latter sold separately)
• CAE optimised heatsink offers improved thermal dynamics
• "Unbreakable" polycarbonate glass
• IP67 (water and dust tight)
• Designed and manufactured in England
• Spot beam pattern
• Colour temperature: 5000K
• Voltage: 9V-32V
• LED lifespan 50 000 hours
• 5 year warranty

Measurements:

• Width: 532mm (560mm  incl. side mounted brackets (not included))
• Depth: 62mm (77mm incl. centered mount)
• Height: 40mm (58mm incl. centered mount)
• Weight: 1,1 kg

Installation guide - Lazer Linear 18 Elite I-LBA
