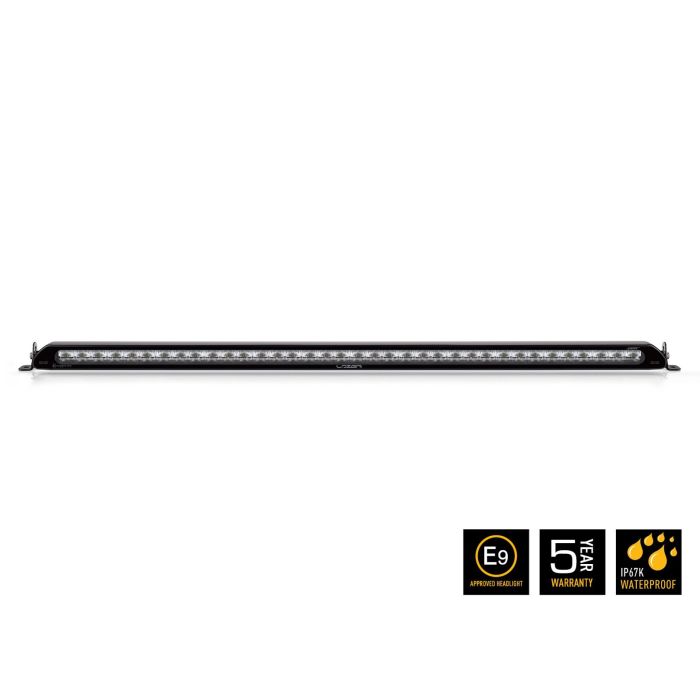

Lazer LED-bar Linear 36

NOTE: Order item, approximately 3-5 days delivery time

Unmatched light with low profile

Shortly summarized the ultimate when it comes to low-profile LED-bars! Lazer Linear-series gives you unmatched light which is optimized for everyday use where an important factor is either the size on the lighting or if you prefer a slimmed solution which is more noticeable in the dark than in daylight.

982 mm wide, 40 mm high and an aluminumcover makes this bar weigh around 2.1 kg.

Lazer Linear is equipped with an edgeless, "undestructable" polycarbonate lens which is surface treated to improve aerodynamic performance and prevent buildup of i.e ice and snow which otherwise affects the light. The unit is developed with high demands to endure rust and together with stainless attachments this LED-bar will stay faithful for a long time.

Just like all other Lazerproducts this bar is manufactured in England with a secured quality and performance which is backed up by a 5 year warranty.

3W LED delivers 13500 lumen, with 1 lux brightness 470m away, which is impressive considering that the lighting consumes only 126 W with 4.4 A current consumption. The best description of the light image is with the word "wide" without, for the sake of it, reducing the distance power straight ahead. You get a pleasant, wide spread of light with a comparably more subdued up/down spread compared to equivalent ST or Triple-R products. This makes the Linear 36 particularly suitable for physically lower (closer to the ground) mounting, e.g. at the grill or license plate.

Characteristics:

• Vacuum-metallised optics for a wide beam pattern
• Reduced up/down spread, suitable for a lower mounting position
• 3W LED
• Low profile design
• Electronic thermal management system
• UNECE approved for on-road high beam function (ECE R112)
• IP67 (water-/dustproof)
• 5 års warranty
• Male/female-contacts included
• Designed and manufactured in England

Technical specifications:

• 10-32 V
• 50 000 hours LED burn time
• 2100 grams
• 13500 lumens
• 36 st LED
• 126 W power consumption
• 8.8 A draw at 14,4V
• ECE R112 Certification (referenstal 30)

Dimensions:

• Width: 982 mm
• Height: 40 mm
• Depth: 62 mm

Photometric data:

• 0,25 lux - 940 metres
• 0,5 lux - 665 metres
• 1 lux - 470 metres
• 3 lux - 271 metres
