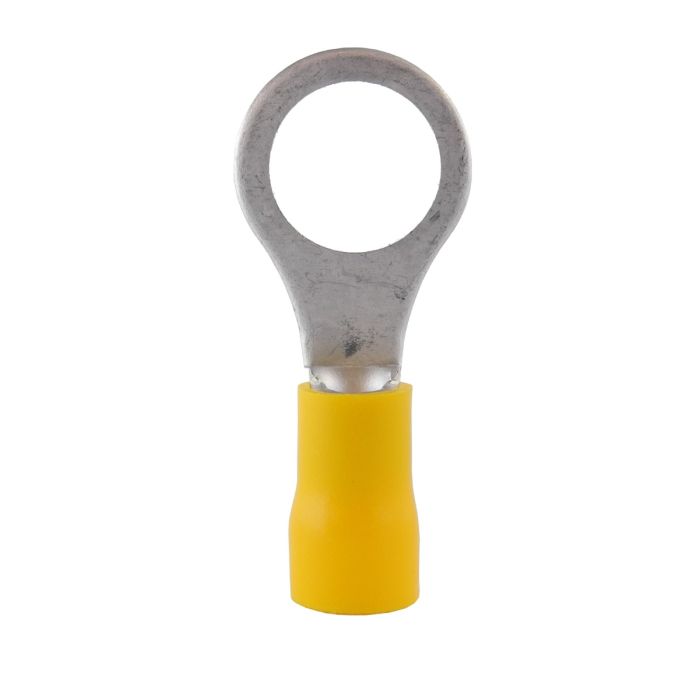

Insulated ring cable lug, Yellow

From €0.37 €0.30
From €0.37 From €0.30
Retailer price From €0.37 Retailer price From €0.30
SKU
454000R

Nominal conductor area from / to: 2.63 - 6.64 mm²
Cable lug in tinned copper
Short sleeve shape

Explanation and location of the different dimensions can be found in the product sketch.

HS M6: 6.4 mm, M8: 8.4 mm, M10: 10.5 mm
ID: 6.7 mm
W M6: 12 mm, M8, M10: 15 mm
L M6: 33.7 mm, M8, M10: 34.9 mm
N: 14 mm

  • Flange shape: Ring shape
  • Insulation: Pipe sleeve vinyl PVC
  • Material insulation: PVC (polyvinyl chloride)
  • Max voltage: 600V
  • Max. current: 48 A
  • Operating temperature range: -15 to 75 ° C
