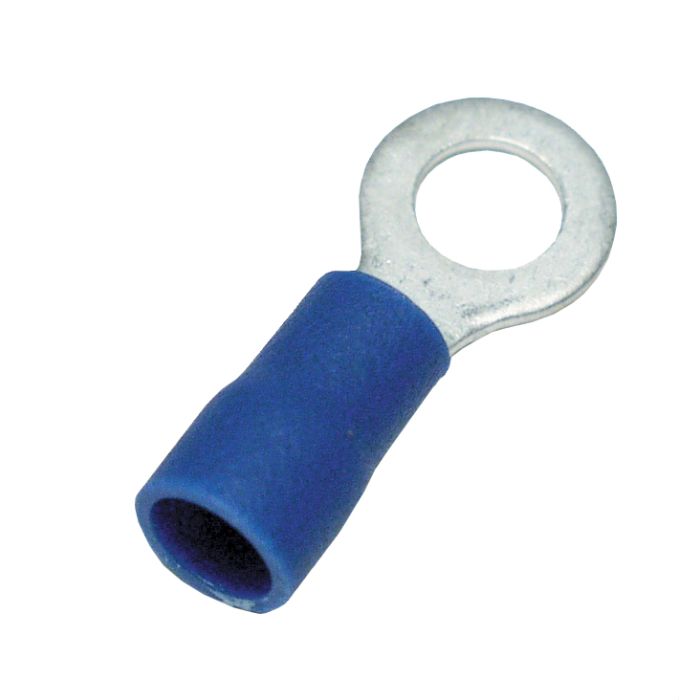

Insulated ring cable lug, Blue

From €0.13 €0.10
From €0.13 From €0.10
Retailer price From €0.13 Retailer price From €0.10
SKU
452500

Nominal conductor area from / to: 1.04 - 2.63 mm²
Cable lug in tinned copper
Short sleeve shape

Explanation and location of the different dimensions can be found in the product sketch.

HS M4: 4.3 mm, M5: 5.3 mm, M6: 6.4 mm, M8: 8.4 mm
ID: 4.9 mm
W M4: 8.5 mm, M5: 9.5 mm M6, M8: 12 mm
L M4, M5: 23 mm, M6, M8: 28.1 mm
N: 11 mm

  • Flange shape: Ring shape
  • Insulation: Pipe sleeve vinyl PVC
  • Material insulation: PVC (polyvinyl chloride)
  • Max voltage: 300V
  • Max. current: 19 A
  • Operating temperature range: -15 to 75 ° C
