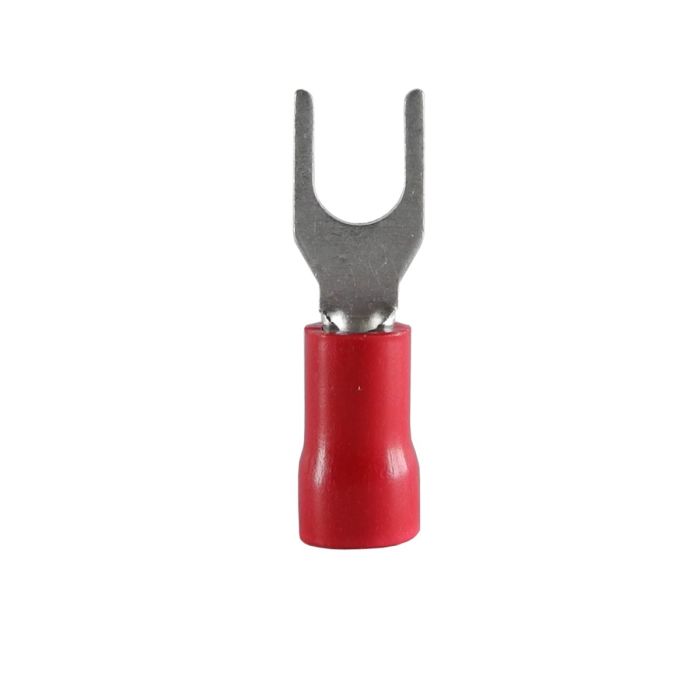

Insulated fork cable lug, Red

From €0.11 €0.09
From €0.11 From €0.09
Retailer price From €0.11 Retailer price From €0.09
SKU
451500G

Nominal conductor area from / to: 0.5-1.65 mm²
Cable lug in tinned brass
Short sleeve shape

Explanation and location of the different dimensions can be found in the product sketch.

HS M4: 4.3 mm, M5: 5.3 mm, M6: 6.4 mm
ID: 4.3 mm
W M4: 6.4 mm, M5: 9 mm, M6: 10.8 mm
L M4, M5: 22 mm, M6: 23 mm
N: 10.5 mm

  • Flange shape: Fork shape
  • Insulation: Partially insulated
  • Material insulation: PVC (polyvinyl chloride)
  • Max voltage: 300V
  • Max. current: 19 A
  • Surface protection: Tinned
  • Operating temperature range: -15 to 75 ° C
