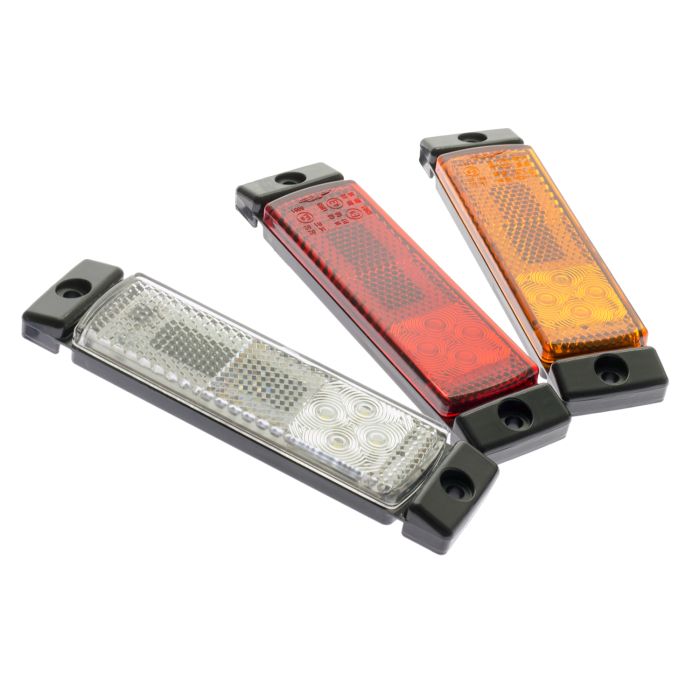

Flat marker lamp with reflex, 9-35V, ECE-approved, 4 LEDs
✓ ECE-approved lights
✓ Works with 9-32V
✓ 0,5 meter cable
Marker lamp with classic design, featuring four LEDs and a reflex. Mounts easily with two screws (not included). Only for surface mounting. Â The lens is made from acrylic and the housing in ABS-plastic.Â
The lamp is easily connected to the rest of the vehicle through either 0,5 m ADR-cable or 5 m ADR-cable. The lamp is available in cool white (front marker), red (rear marker), and amber (side marker).Â
The lamps are ECE-approved accordingly:Â
Red
- Positioning lamp: R1 02 E9 6981
- Reflex: 1A 02 E9 6981
Amber
- Positioning lamp: SM1 00 E9 1147
- Reflex: 1A 02 E9 1147
Cool White
- Positioning lamp: EN 02 E9 6982
- Reflex: 1A 02 E9 6982
Read more about UNECE regulations here.
The lamp is supplied individually and has the following measurements: 130x32x13 mm (LxHxD)
Â
Note: Only mount on flat surfaces to avoid tensions within the plastic, which can cause leakage and other damage
Depth | 13 mm |
---|---|
Power usage 12V/24V | 0,16A / 0,2A |
Height | 32 mm |
Cable length | 0,5 m |
Glass | Clear |
Warranty | 12 Months |
Tillverkare | Blixtra |
