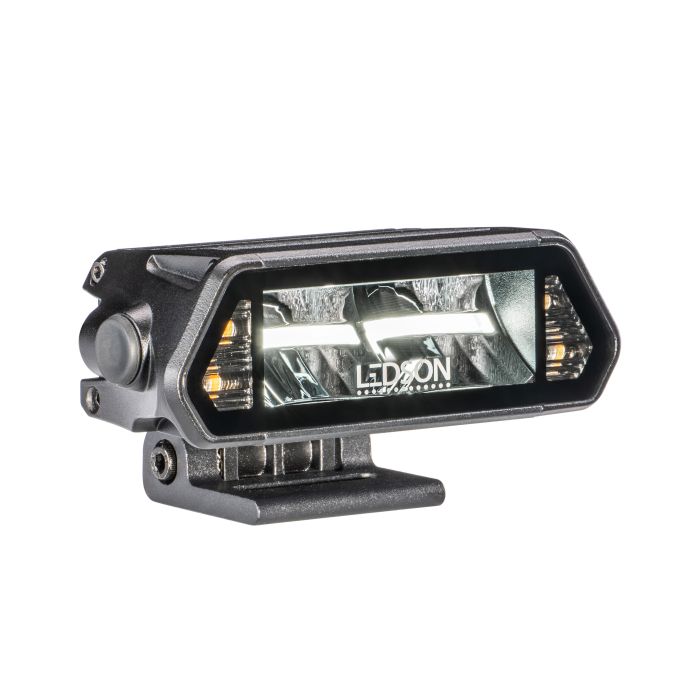

Epix5+ Prime Strobe LED bar

Treat yourself to the best. The Epix+ series stands out from the crowd with a uniquely designed, sporty aesthetic, developed with today's modern vehicles in mind. EPIX5+ strobe is a work bar with approved R65 strobe lights that ensure your visibility. Choose between white or yellow-orange position light.

EPIX5+ Strobe is the LED light bar that offers a modern look and has the performance to meet all conditions. With its 30W, this bar provides a Driving Beam light with a range of 225 m. With 1,700 actual lumens and a color temperature of 5000K, it provides strong and natural illumination for all conditions. Ledsons smart brackets ensure mounting practically anywhere and however you want on the vehicle.

Position Lights

The bar features Epix series specially designed reflectors. The color of the position lights is selectable between yellow/orange and white, which is also approved for road use.

Strobe Lights

The Epix5+ Strobe is equipped with 10 different strobe patterns, one of which is ECE R65-approved. By easily connecting two units together, you can achieve both synchronous and asynchronous flash patterns between them. Use your Epix5+ Strobe LED light bar as a work light or reverse light; the strobe turns off when activated and then resumes your previously selected flashing pattern immediately when you turn off the work light again.

What more is needed?

• DT-relay: We strongly recommend using our cable harness with 1 x 6-pin DT (part no. 7801006). Ledson Connect provides a super easy connection while being interconnectable if there is a future desire to easily expand with additional lights or bars
• If you want to reduce the energy consumption of your Epix LED-bar, you can easily install our E-screw (part no. 334915020). By mounting this screw on the back of the LED-bar, it enters eco-mode, reducing the brightness and energy consumption.

Features and technical data:

• Position lights, integrated in the reflector
• Selectable position light in white or yellow/orange
• E-marked ECE R149 (R112), R7, R65 and R10 (EMC rated)
• Driving Beam light pattern
• Range: 225 m (1 lux)
• 2,450 lumens (theoretical), 1,700 lumens (actual)
• Color temperature 5000K (Neutral White)
• 30 W (8 x 15 W LEDs)
• Voltage: 9-36V
• IP69K (water/dustproof)
• Aluminum housing and polycarbonate lens
• Side reflective optics
• Pressure equalization membrane
• Electronic heat management
• DT connector (supplied)
• 1,8A at 12V and 0,9A at 24V

Supplied:

• Epix5+ Strobe LED bar
• Bolts and screws to attach the bar to appropriate surface
• Smart mounting details
• DT cable 6-pin (you will also need a DT harness found here)
• Installation instructions

Dimensions (excl mounting):

• Width: 128 mm
• Height: 43 mm
• Depth: 61 mm

Flash patterns:

1. Single flash synchronization: 2.2HZ
2. Single flash asynchronous: 2.2HZ (when using 2 LED bars)
3. Triple flash synchronization: 1.1HZ
4. Triple flash asynchronous: 1.1HZ (when using 2 LED bars)
5. Quadruple flash synchronization: 1.25HZ
6. Quadruple flash asynchronous: 1.25HZ (when using 2 LED bars)
7. Combination of one long and five short synchronization: 0.83HZ
8. Combination of one long and five short asynchronous: 0.83HZ (when using 2 LED bars)
9. Burst flash synchronization: 10HZ
10. Burst flash asynchronous: 10HZ (when using 2 LED bars)

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
