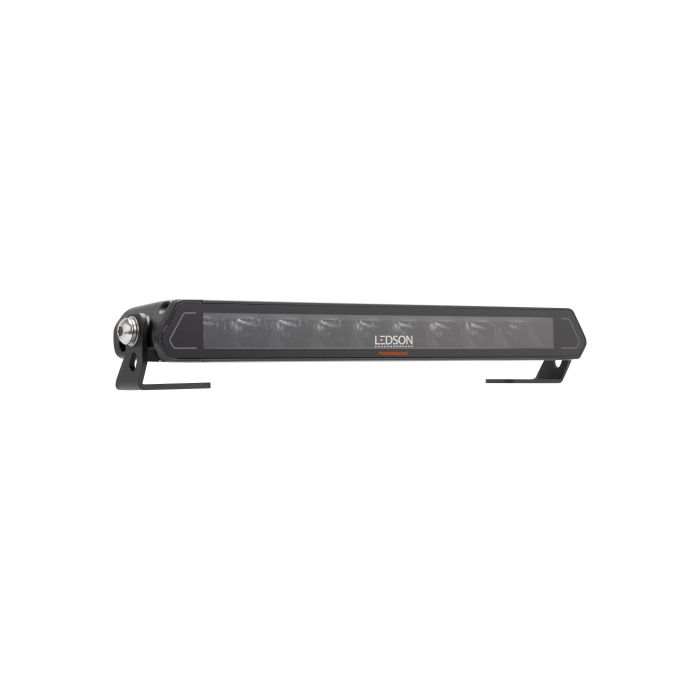

EPIX11 Slim LED Bar 11" 54W Powerboost

Meet Epix11 Slim - the future of LED lighting in a compact design. With only 33mm in height, it delivers surprisingly strong brightness and range. Ledson's own design creates a minimalist and powerful light bar that sets a new standard.

For those seeking compact power and style without compromises – Epix11 Slim is the answer.
A new generation from the Epix family, this model comes in a sleeker and more compact design. Meet Epix11 Slim, a light bar in a streamlined design but with the same impressive power and style.

Epix11 Slim is precision-designed to suit today's modern vehicles, and its compact size makes it perfect for those who demand performance without sacrificing aesthetics. With a power output of 108W, Epix11 Slim is ready to illuminate the road ahead with impressive brightness.

Pulse-controlled Powerboost - It doesn't get smoother than this.
Epix11 Slim comes equipped with Powerboost – an additional power mode for those moments when you need maximum illumination. A simple adjustment activates this impressive brightness, allowing you to easily customize the light of the light bar. With the new generation of Powerboost from Ledson, switching modes is easy with the light switch through a few simple steps.

Driving Beam Light Pattern (Drive)
Epix11 Slim also brings the advanced Driving Beam light pattern from previous Epix models. Each reflector is carefully designed to mimic and enhance the car's existing headlights and lights, providing an optimal light pattern for the road ahead.

Whether you're looking for the best in compact LED lighting or want a light bar that combines performance with style, Epix11 Slim is the obvious choice. Experience the future of light with Epix11 Slim – a light bar that takes your driving experience to the next level.

What more is needed?

• DT-relay: We strongly recommend using our cable harness with 1 x 2-pin DT (part no. 7801002). Ledson Connect provides a super easy connection while being interconnectable if there is a future desire to easily expand with additional lights or bars
• Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and nicer with the help of a number plate holder or pipe bracket. See our different accessories for mounting options.

Features and technical data:

• Driving Beam light pattern (wide and oblong)
• E-marked R148, R149 (ref. nr. 20), R10 (EMC rated)
• Range: 289 m (1 lux), Powerboost: 420 m (1 lux)
• 4'900 lumens (theoretical), 3'800 lumens (actual)
• Color temperature 5000K (Neutral White)
• 54 W (9 x 6 W LEDs)
• Voltage: 9-36V
• IP69K (water/dustproof)
• Aluminum housing and polycarbonate lens
• Side reflective optics
• Pressure equalization membrane
• Electronic heat management
• DT connector (supplied)

Supplied:

• Epix11 Slim Powerboost 11" LED bar
• Bolts and screws to attach the bar to appropriate surface
• Smart mounting details
• DT cable 2-pin (you will also need a DT harness found here)
• Installation instructions

Dimensions & weight (excl mounting):

• Width: 296 mm
• Height: 33 mm
• Depth: 59 mm
• Weight: 0.7 kg

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
