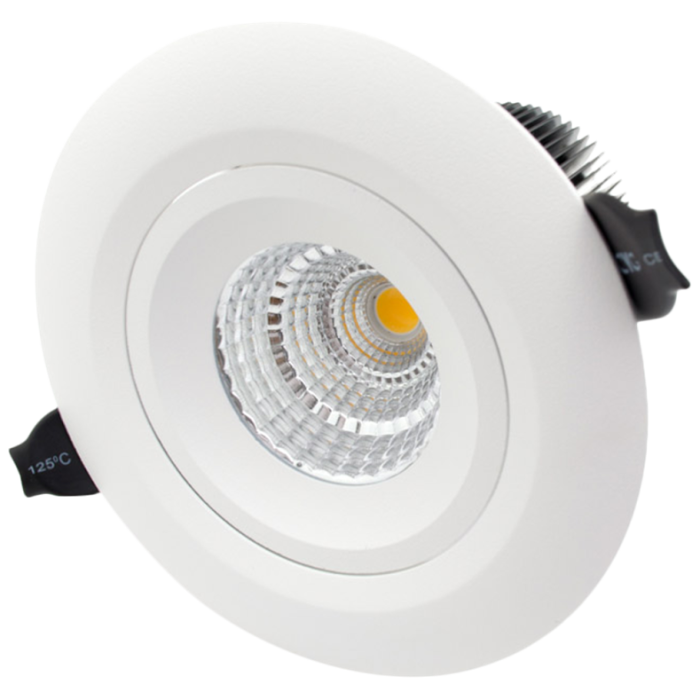

Chicago 15W LED, 980 Lumen
✔ Equivalent to 75W halogen
✔ COB-chip from Sharp
✔ Warm white
Chicago 15W with a modern COB-chip from Sharp. This is a spotlight with high quality and modern technology. Using a COB-chip, a very nice colour is achieved with high color rendition index. Included with the lamp is a high quality transformer so you can connect it directly to 230V.
The spotlight has a dispersion of 60 degrees. Thanks to the high reflector, the lamp is almost glare-free.
The included transformer is created to power one spotlight. The advantage of having many small transformers is that if a driver would fail, only one lamp would go out instead of the entire area.
Technical information
| Output | 15W |
| Dimmable | Yes (5-100%) |
| Start up time: | Direct |
| Material | Aluminum |
| Colour | 2700 Kelvin (Warm white) |
| Light flow | 980 Lumen |
| Equivalent to: | About 75w halogen bulb |
| Efficiency | 65 Lumen/watt |
| Dispersion | 60 degrees |
| Voltage | 100-240V AC (transformer included) |
| Life span: | 50 000h |
| Diameter | 109mm |
| Height | 110mm |
| Hole needed | 90-100mm |
| Minimum depth | 120 mm |
| CRI | 85 |
| IP | IP42 (Approved for bathrooms when mounted atleast 225 cm from the floor) |
| Directable | 0-30 degrees |
Note: If there's any combustible material where the cooling fins of the spotlight are, please use a safetybox to avoid fires.
Teknisk info
- Effekt: 15W COB
- Dimbar: Ja (5-100%)
- Starttid: Direkt
- Material: Aluminium (Vitlackerad)
- Färgtemperatur: 2700 Kelvin (Varmvit)
- Ljusflöde: 980 Lumen (ca 75w Halogenljus)
- Ljusutbyte: 65 Lumen/watt
- Spridningsvinkel: 60 grader
- Spänning: 100-240V AC (transformator ingår)
- Livslängd: 50 000h (minst 70% ljusstyrka kvar)
- Diameter: 109mm
- Höjd: 110mm
- Håltagning: 90-100mm
- Minsta inbyggnadsmått: 120mm (Regel 120mm + Gips 13mm fungerar)
- CRI: 85
- IP-klass: IP42 (Godkänd i badrum vid montering minst 225cm från golv)
- Denna downlight är riktbar 0-30 grader.
| Tillverkare | Teralite |
|---|---|
| Unit | st |
