Castor7 Trinity LED auxiliary package (12 V)

Trinity = Castor7 in a triple

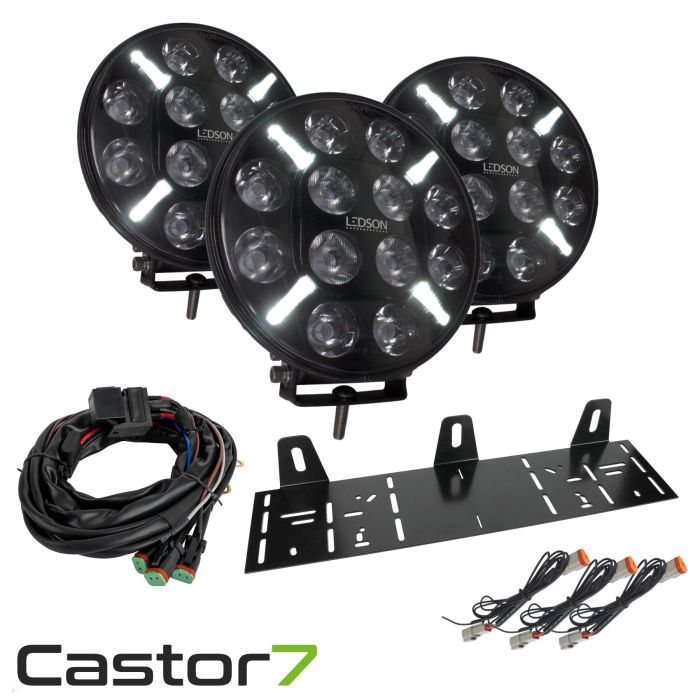

This package contains three of our tough Castor7 + a practical powder coated steel holder and wiring (1 x DT relay and 3 x DT adapter).

Castor7 is a distinctive 7 "auxiliary light in modern black for those who want something tougher than the traditional "tame" look of todays lights. Comes with a 24 month warranty.

The following is included:

• 3 x Castor7 LED auxiliary light (part 33491205)
• 1 x Auxiliary light mounting plate (part 630217)
• 1 x Ledson Connect with three DT connectors (part 7801003)
• 1 x locking strip for license plate (part 960202)

Plus:

• Bolts and screws to secure the auxiliary light with either one or two attachment points
• DT connectors (3-pole) - one for each extra light
• Installation instructions

Driving beam light image

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Characteristics:

• E-marked (E8, ref. 30), ECE R112 / R7 / R10
• With position light (4 LEDs)
• "Driving beam" light image (wide and oblong / elongated)
• 5400 lumen (theoretical), 4590 lumen (actual)
• Range 760 m (0.25 lux), 380 m (1 lux)
• Cold white light (6500 K)
• TIR Optical System (Total Inner Reflection)
• 24 month warranty

Technical data:

• 60 W (12 x 5 W LG LED)
• IP68 (water / dust-proof)
• DT connector (supplied)
• Electronic heat management
• Voltage 9-36 V
• Load 4.2 A @ 12 V and 2.0 A @ 24 V

Dimensions & Weight:

• Width: 180 mm
• Height: 191.4 mm (incl bracket)
• Depth: 48 mm
• Weight: 1.2 kg
