LS9x2 Deluxe - Auxiliary lamp kit (12V)

A kit with two auxiliary LED-lamps for you who want more light but also want it to look good. The two LED-lamps from LEDSON will provide you with a total of 14000 lumens in addition to your regular high beam. The two lamps are only 7,3 cm thin, EMC-proof, and features a combined light pattern to provide light both down the road but also close to the car - making it easier to spot any dangers ahead of you.

The mounting bar comes with a chromed pipe, which creates an exclusive feel to your car.

Combined light pattern

A combined light pattern is a mixture of pencil pattern (long, narrow light beam) and flood pattern (short, broad light beam). This  mixture is perfect for most drivers since it will illuminate both the sides of the road as well as far ahead.

Mounting

For easy mounting, a mounting plate is included as well as a DT-relay. The mounting plate is installed behind the license plate, and consists of powder coated steel for a long lifetime.  The DT-relay makes it easy to connect to your car's high beam, so that the auxiliary lamps is turned on at the same time as your high beam. This means that the kit includes everything you need, except for a couple of screws to secure the mounting plate to your car.

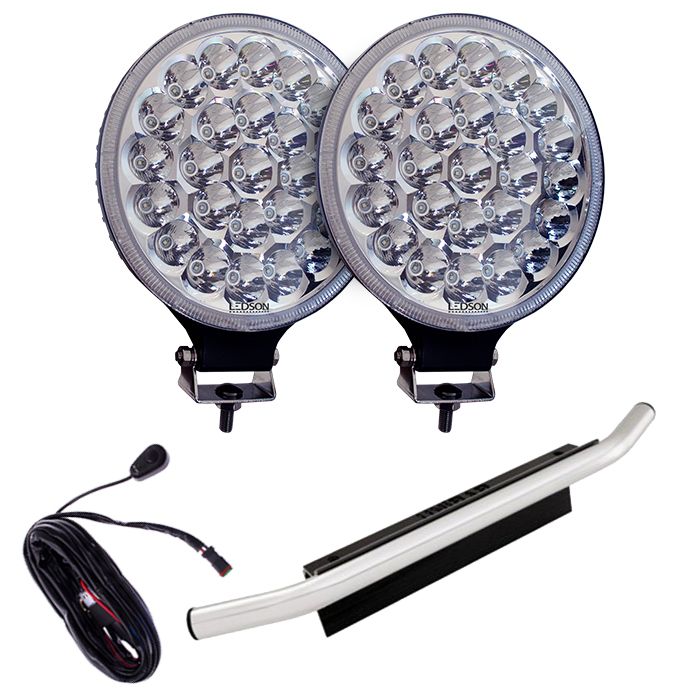

Included in the kit:

• 2 x 9" LED auxiliary lamps (SKU 33303259)
• 1 x Chromed bar mounting plate (SKU 920200)
• 1 x DT-relay w/ two DT-connections (SKU 3346006)

Specifications, auxiliary lamps:

• EMC-proof
• Voltage: 10-30V
• Load: 5,0A @ 12V och 2,5A @ 24V
• Power: 75W
• LEDs: 25 x 3W Osram
• Weather proof: Dust and water-proof, IP67
• Range: 980m (0,25 lux)
• Light: 6750 lumen
• Light pattern: kombinationsljusbild
• Working temperature: -40C to 100C
• Colour: 6000K (cool white)

Measurements

• Width: 228,6 mm
• Height: 259,3 mm (286,3 mm incl foot)
• Depth: 73,5 mm
• Size: 9"
• Weight: 2,71 kg
