Castor7 Quadrinity LED auxiliary package (12 V)

Quadrinity = Castor7 x4

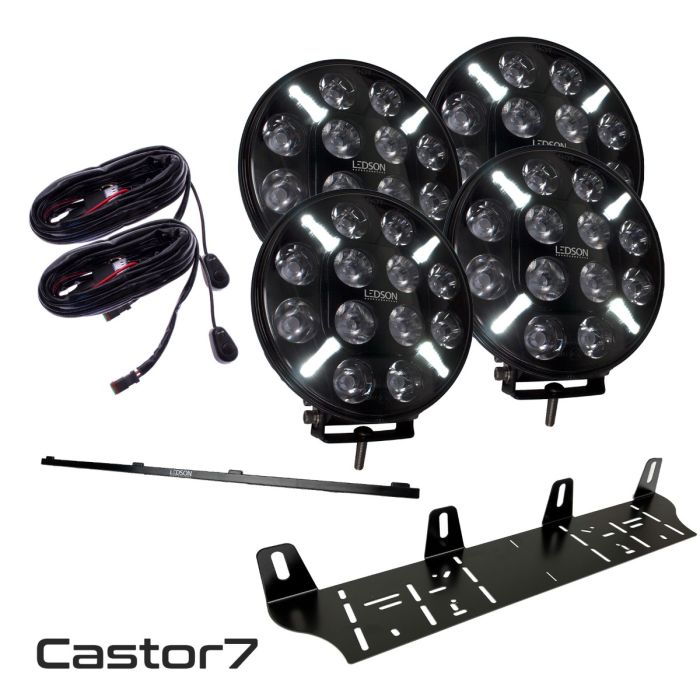

This package contains four of our tough Castor7, a practical powder coated steel holder and wiring (2 x DT relay).

Castor7 is a distinctive 7" auxiliary light in modern black for those who want something tougher than the traditional "tame" look of todays lights. Looks just as good unlit as with the lights on! Comes with a 36 month warranty.

The package include the following products:

• 4 x Castor7 LED auxiliary light (part 33491205)
• 1 x Auxiliary light mounting plate (part 3346074)
• 1 x Ledson Connect (part 7801003)
• 1 x Ledson Connect (part 7801002)
• 1 x Locking strip for number plate (part 960202)

Extras:

• Bolts and screws to secure the auxiliary light with either one or two attachment points
• DT connectors (3-pole) - one for each extra light
• Installation instructions

Driving beam light image

Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Characteristics (per light):

• E-marked (E8, ref. 30), ECE R112 / R7 / R10
• With position light (4 LEDs)
• "Driving beam" light image (wide and oblong / elongated)
• 5 400 lumen (theoretical), 4 600 lumen (actual)
• Range 760 m (0.25 lux), 380 m (1 lux)
• Cold white light (6500 K)
• TIR Optical System (Total Inner Reflection)
• 24 month warranty

Technical data (per light):

• 60 W (12 x 5 W LG LED)
• IP68 (water / dust-proof)
• DT connector (supplied)
• Electronic heat management
• Voltage 9-36 V
• Load 4.2 A @ 12 V and 2.0 A @ 24 V

Dimensions & Weight (per light):

• Width: 180 mm
• Height: 191.4 mm (incl bracket)
• Depth: 48 mm
• Weight: 1.2 kg
