Pollux7+ Unity LED auxiliary package (12 V)

Pollux7+ unity: Two awesome modern 7" with position light in white or orange!

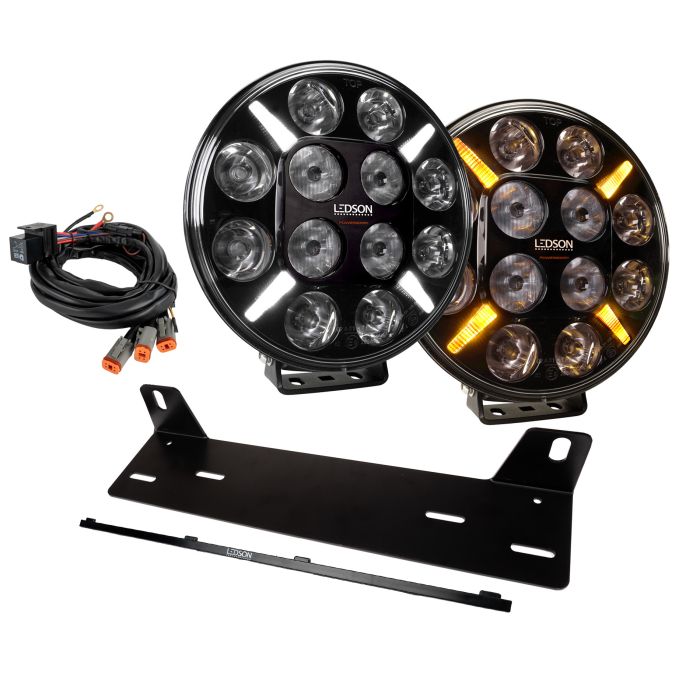

This kit contains two of our tough Pollux7+,  a practical powder coated steel holder, wiring (1 x Ledson Connect) and a locking strip for the number plate.

Pollux7+ delivers exceptional brightness and range to ensure superior visibility and safety under all driving conditions. Its rugged design ensures that Pollux7+ Generation 3 is built to withstand tough environments and is ready to provide outstanding performance for years to come.

The following is included:

• 2 x Pollux7+ LED auxiliary light (part 33491207)
• 1 x Holder in powder coated steel (part 3346053)
• 1 x Ledson Connect with 3 DT connectors (part 7801005)
• 1 x Locking strip for number plate (part 960202)

Plus:

• Bolts and screws to secure the auxiliary light with either one or two attachment points
• DT connectors (4-pole)
• Installation instructions

Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This

Pollux7+ Gen3 comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few easy steps, as shown here. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.

Switch to Powerboost mode with "10+10+5"

This is done most easily with the 'light switch' when the light switch is in off or parking light mode.

1. Turn on the auxiliary light for about 10 seconds (between 7-13 seconds)
2. Flash the auxiliary light rapidly 10 times (within 10 seconds)
3. On the eleventh flash, hold the light on and after about 5 seconds the Powerboost function will automatically switch on or off.

TIR reflectors

TIR stands for Total Internal Reflection and means that all light is effectively reflected and directed before it is emitted from the reflector. Spill light (the light that is not directed but disappears "unfocused" from the lighting without actually serving any purpose) is minimized. A traditional reflector directs and focuses most of the light but far from all; Pollux 9+ has these TIR reflectors for maximum light.

Driving Beam pattern

Driving Beams' reflectors are all computer-designed and manufactured to provide a light pattern similar to a combo beam, but more uniform and within legal limits. It mimics and enhances the vehicle's existing headlights and beam pattern.

Features (per light):

• E-marked (ref. no 30), ECE R112 / R10 / R7 (white position light) - Learn more about E-marks here
• Equipped with pulse-controlled Powerboost
• EMC secured (does not interfere with radio signals)
• With position light (4 pcs LED) yellow-orange or xenon white (connect the color you prefer)
• "Driving beam" light pattern
• Range: 380 m (1 lux), Powerboost: 430 m (1 lux)
• 7200 lumens (theoretical), 5400 lumens (actual)
• Color temperature 5000K (Neutral White)
• TIR optical system (Total Inner Reflection)
• Pressure equalization membrane
• 36-month warranty

Technical Data (per light):

• 72W (12 x 6W LED)
• IP68 & IP69K (water/dustproof)
• DT connector (4-pin) included
• Electronic heat management
• Voltage 9-36 V
• Load 4,2 A @ 12 V and 2,1 A @ 24 V
• Load Powerboost 6 A @ 12 V and 3,5 A @ 24 V

Dimensions & Weight (per light):

• Width: 180 mm
• Height: 191 mm (including bracket)
• Depth: 48 mm
• Weight: 1.2 kg
• Cable length: 650 mm

Cable Installation Instructions (detailed installation instructions are included with the product):

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position lights (- ground)
• White: Position lights (+) white light
• Yellow: Position lights (+) yellow-orange light

NOTE: The DT connector must not be cut, as this increases the risk of moisture damage and the warranty will cease to apply.
