Libra Trinity LED auxiliary light (12 V)

Trinity = The light and design of Libra10+ (times three!)

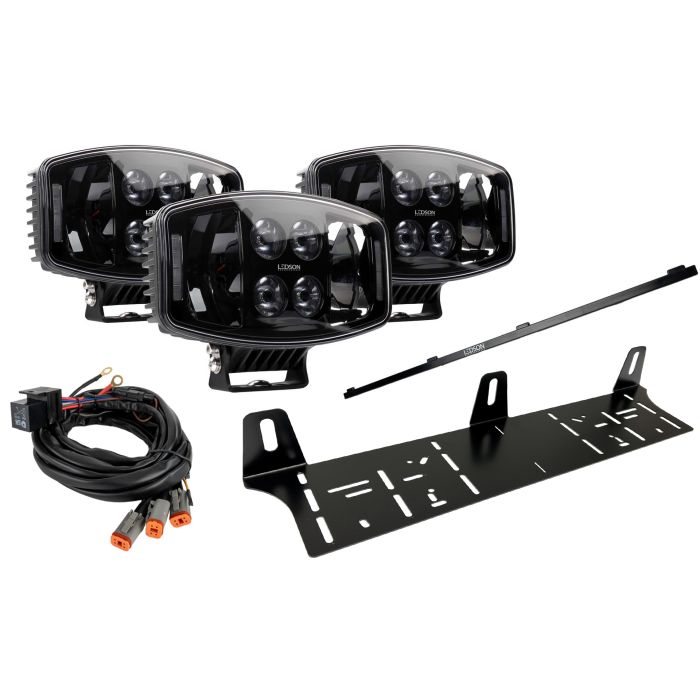

This kit contain three pieces of our most popular auxiliary light Libra10+ LED, a universal holder, locking strip and the wiring you need to install the lights (to either light up with the high beam or by pushing a separate button.

The Libra10+ has an optional position light in xenon white or yellow/orange and comes with a design suitable for the modern vehicle. The lighting is approved as an auxiliary light according to ECE R112 and has approved position light according to ECE R7 (applies to white light).

Package includes:

• 3 x Libra10+ LED auxiliary light (part 33490615)
• 1 x Auxiliary light mounting plate (artnr 3346075)
• 1 x Ledson Connect with three DT-contacts (artnr 7801005)
• 1 x Locking strip for number plate (artnr 960202)

Also included:

• Bolts and screws to attach your auxiliary lights
• DT connectors (4-pin) - one for each auxiliary light
• Installation instructions

Characteristics (Per light:

• Driving Beam (Combo)
• ECE R112 (Approved as auxiliary light) - Read more about UNECE regulations here
• ECE R7 (Approved position light)
• ECE R10 (EMC-secured)
• 10 000 theoretical lumens, 8500 actual lumens
• Cold white light (6000K)
• 4 pole DT cable included

Technical data:

• 90 W (2 x 25 W LED + 4 x 10W LED)
• IP69K (water / dust safe)
• 9-36 V
• TIR optical system
• Electronic heat management


Dimensions & weight:

• Width: 247 mm
• Height: 141 mm
• Depth: 92mm (excl. Brackets)
• Weight: 2100 grams

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
