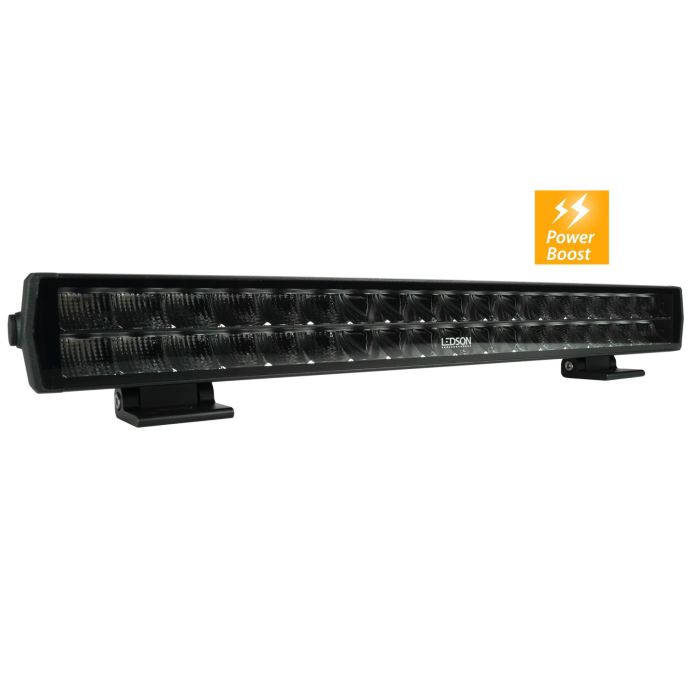

Alfa 20" Powerboost LED bar 216W (E-marked, Combo)

Ledson Alfa 20" with the possibility of Powerboost!

Alfa 20" Powerboost lets you choose whether you want to drive E-marked (ECE R112) with 1 lux brightness at 468 meters or with a little extra lighting power with Powerboost activated and 1 lux at 744 meters (not E-marked). The Powerboost alternative is easily activated by removing a fuse by the DTP/ATP connector.

This flexible solution allows you to drive E-marked or with Boost depending on season, what you prefer at the time etc. Ledson Alfa delivers, regardless of the mode you choose, large amounts of light and ensures that your driving is safe and comfortable while the led bar looks really neat on your vehicle.

Combined beam pattern (combo)

This bar has a combo light pattern, which means that some diodes are aimed closer to the vehicle, spreading the light over a wide area, while the other LEDs are focused far away, giving far-reaching light. The best of two worlds!

What more is needed?

• DTP/ATP-relay: We strongly recommend using our DTP/ATP relay (part no 7800301) with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DTP/ATP relay.
• Mounting on the vehicle: Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother with the help of a license plate holder or pipe bracket. See our various accessories for mounting options. Custom made holder for this LED bar is available here!

Characteristics:

• CCombo Beam light pattern
• E-marked ECE R112 (ref. 50) NOTE: only when Powerboost is not activated
• ECE R10 (EMC secured)
• Range without Powerboost: 468 m (1 lux)
• Range with Powerboost: 744 m (1 lux)
• Color temperature 5000K (cold white)
• Dual mounting options

Technical data:

• 216 W (36 x 6 W LP LED)
• Side-reflecting optics
• Electronic Thermal Management
• IP68/IP69K: water / dust-tight
• Aluminum Casing and Polycarbonate lens
• DTP/ATPconnector (included)
• Voltage: 9-36V

Included:

• Alfa 20" Powerboost LED bar
• Side-mounted brackets
• Slideable bottom brackets
• Bolts and screws to mount the bar
• DTP/ATP connector
• Installation instructions

Measures & weight (excl. brackets):

• Witdh: 522 mm
• Height: 58 mm
• Depth: 53 mm
• Cable length: 650 mm

NOTE: The DTP/ATP connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DTP/ATP connector (male) with joint included with the product.
